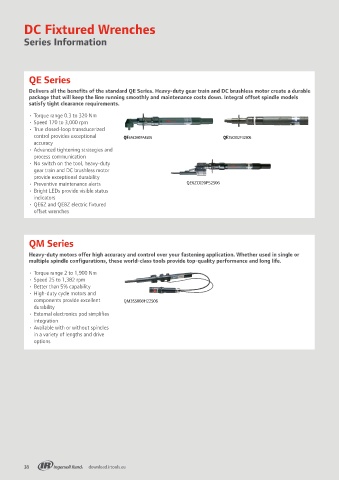

Page 38 - Assembly_Solutions

DC Fixtured Wrenches

Series Information

QE Series

Delivers all the benefits of the standard QE Series. Heavy-duty gear train and DC brushless motor create a durable
package that will keep the line running smoothly and maintenance costs down. Integral offset spindle models
satisfy tight clearance requirements.

• Torque range 0.3 to 320 Nm
• Speed 170 to 3,000 rpm
• True closed-loop transducerized
control provides exceptional QE6AC040FA4S06 QE2SC002F32S06
accuracy
• Advanced tightening strategies and
process communication
• No switch on the tool, heavy-duty
gear train and DC brushless motor
provide exceptional durability
• Preventive maintenance alerts QE6ZC020P52S06
• Bright LEDs provide visible status
indicators
• QE6Z and QE8Z electric fixtured
offset wrenches

QM Series

Heavy-duty motors offer high accuracy and control over your fastening application. Whether used in single or
multiple spindle configurations, these world-class tools provide top-quality performance and long life.

• Torque range 2 to 1,900 Nm
• Speed 25 to 1,382 rpm
• Better than 5% capability
• High-duty cycle motors and
components provide excellent QM3SS008H22S06
durability
• External electronics pod simplifies
integration
• Available with or without spindles
in a variety of lengths and drive
options
