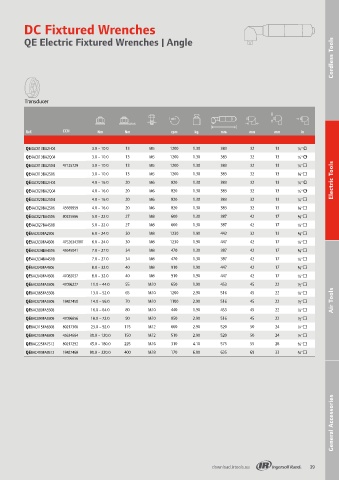

DC Fixtured Wrenches

QE Electric Fixtured Wrenches | Angle
Cordless Tools Cordless Tools

Transducer

Ref. CCN Nm Nm rpm kg mm mm mm in

QE4AC013BA2H04 3.0 – 10.0 13 M5 1200 1.30 383 32 13 1/4"
QE4AC013BA2Q04 3.0 – 10.0 13 M5 1200 1.30 383 32 13 1/4"
QE4AC013BA2S04 47125729 3.0 – 10.0 13 M5 1200 1.30 383 32 13 1/4"
QE4AC013BA2S06 3.0 – 10.0 13 M5 1200 1.30 383 32 13 3/8"
QE4AC020BA2H04 4.0 – 16.0 20 M6 820 1.30 383 32 13 1/4" Electric Tools
QE4AC020BA2Q04 4.0 – 16.0 20 M6 820 1.30 383 32 13 1/4"
QE4AC020BA2S04 4.0 – 16.0 20 M6 820 1.30 383 32 13 1/4"
QE4AC020BA2S06 45669959 4.0 – 16.0 20 M6 820 1.30 383 32 13 3/8"
QE4AC027BA4S06 80235666 5.0 – 22.0 27 M8 600 1.30 387 42 17 3/8"
QE4AC027BA4S08 5.0 – 22.0 27 M8 600 1.30 387 42 17 1/2"
QE6AC030FA2S06 6.0 – 24.0 30 M8 1230 1.90 442 32 13 3/8"
QE6AC030FA4S08 47526343001 6.0 – 24.0 30 M8 1230 1.90 447 42 17 1/2"
QE4AC034BA4S06 45645041 7.0 – 27.0 34 M8 470 1.30 387 42 17 3/8"
QE4AC034BA4S08 7.0 – 27.0 34 M8 470 1.30 387 42 17 1/2"
QE6AC040FA4S06 8.0 – 32.0 40 M8 910 1.90 447 42 17 3/8"
QE6AC040FA4S08 47082037 8.0 – 32.0 40 M8 910 1.90 447 42 17 1/2"
QE6AC055FA5S08 47096227 11.0 – 44.0 55 M10 650 1.90 453 45 22 1/2"
QE8AC065FA5S08 13.0 – 52.0 65 M10 1200 2.90 516 45 22 1/2"
QE8AC070FA5S08 18427450 14.0 – 56.0 70 M10 1100 2.90 516 45 22 1/2" Air Tools Air Tools
QE6AC080FA5S08 16.0 – 64.0 80 M10 440 1.90 453 45 22 1/2"
QE8AC090FA5S08 47096656 18.0 – 72.0 90 M10 850 2.90 516 45 22 1/2"
QE8AC115FA6S08 80217300 23.0 – 92.0 115 M12 660 2.90 520 50 24 1/2"
QE8AC150FA6S08 45634664 30.0 – 120.0 150 M12 510 2.90 520 50 24 1/2"
QE8AC225FA7S12 80217292 45.0 – 180.0 225 M16 310 4.10 575 55 28 3/4"
QE8AC400FA8S12 18427468 80.0 – 320.0 400 M18 170 6.00 635 69 33 3/4"
