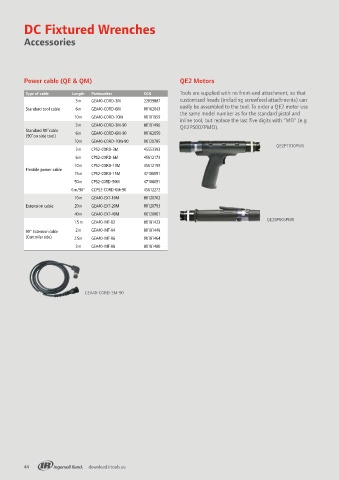

DC Fixtured Wrenches

Accessories

Power cable (QE & QM) QE2 Motors

Type of cable Length Partnumber CCN Tools are supplied with no front-end attachment, so that
3 m GEA40-CORD-3M 22039887 customized heads (including screwfeed attachments) can
easily be assembled to the tool. To order a QE2 motor use
Standard tool cable 6 m GEA40-CORD-6M 80162043
the same model number as for the standard pistol and
10 m GEA40-CORD-10M 80101959
inline tool, but replace the last five digits with “MO” (e.g
3 m GEA40-CORD-3M-90 80101496 QE2PS007PMO).
Standard 90˚cable 6 m GEA40-CORD-6M-90 80162050
(90˚on side tool)
10 m GEA40-CORD-10M-90 80120785
QE2PT010PM0
3 m CPS2-CORD-3M 45553393
6 m CPS2-CORD-6M 45612173
10 m CPS2-CORD-10M 45612199
Flexible power cable
15 m CPS2-CORD-15M 47106091
50 m CPS2-C0RD-50M 47106091
6 m/90° CCPS2-CORD-6M-90 45612272
10 m GEA40-EXT-10M 80120702
Extension cable 20 m GEA40-EXT-20M 80120793
40 m GEA40-EXT-40M 80120801
QE2SP005PM0
1.5 m GEA40-INT-02 80181423
90° Extension cable 2 m GEA40-INT-04 80181449
(Controller side) 2.5m GEA40-INT-06 80181464
3 m GEA40-INT-08 80181480

GEA40-CORD-3M-90
