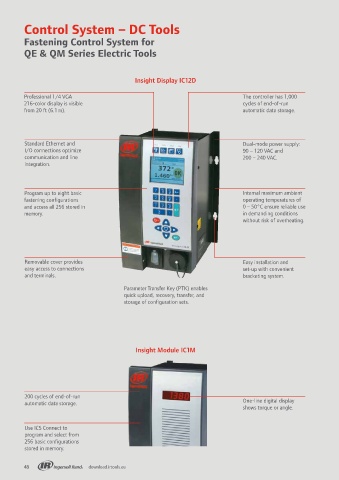

Control System – DC Tools
Fastening Control System for
QE & QM Series Electric Tools
Insight Display IC12D
Professional 1/4 VGA The controller has 1,000
216-color display is visible cycles of end-of-run
from 20 ft (6.1 m). automatic data storage.
Standard Ethernet and Dual-mode power supply:
I/O connections optimize 90 – 120 VAC and
communication and line 200 – 240 VAC.
integration.
Program up to eight basic Internal maximum ambient
fastening configurations operating temperatures of
and access all 256 stored in 0 – 50°C ensure reliable use
memory. in demanding conditions
without risk of overheating.
Removable cover provides Easy installation and
easy access to connections set-up with convenient
and terminals. bracketing system.
Parameter Transfer Key (PTK) enables
quick upload, recovery, transfer, and
storage of configuration sets.
Insight Module IC1M
200 cycles of end-of-run
automatic data storage. One-line digital display
shows torque or angle.
Use ICS Connect to
program and select from
256 basic configurations
stored in memory.
