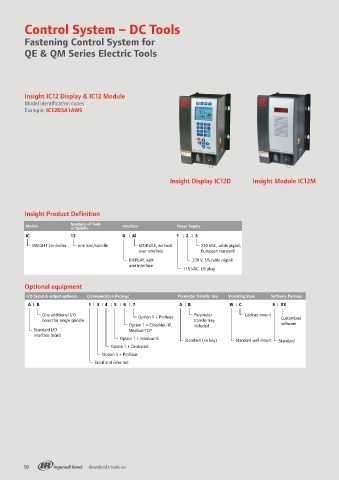

Control System – DC Tools
Fastening Control System for
QE & QM Series Electric Tools
Insight IC12 Display & IC12 Module
Model identification codes
Example: IC12D3A1AWS
Insight Display IC12D Insight Module IC12M
Insight Product Definition
Models Numbers of Tools Interface Power Supply
or Spindle
IC 12 D | M 1 | 2 | 3
INSIGHT Controller one tool/spindle MODULE, without 230 VAC, cable pigtail,
user interface European standard
DISPLAY, with 220 V, US cable pigtail
user interface
115 VAC, US plug
Optional equipment
I/O (input & output options) Communication Package Parameter Transfer Key Mounting Style Software Package
A | B 1 | 3 | 4 | 5 | 6 | 7 A | B W | C S | XX
One additional I/O Option 1 + Profinet Parameter Cabinet mount
board for single spindle transfer key Customized
Option 1 + EtherNet/IP, included software
Standard I/O Modbus-TCP
interface board
Option 1 + Interbus-S Standard (no key) Standard wall mount Standard
Option 1 + Devicenet
Option 1 + Profibus
Serial and Ethernet
