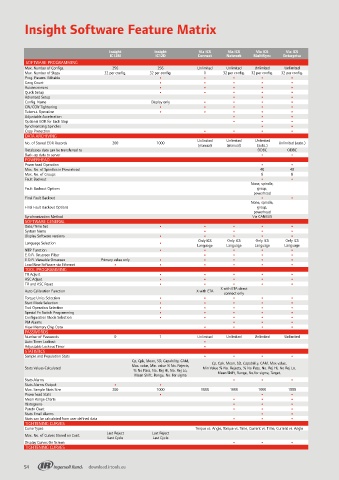

Insight Software Feature Matrix

Insight Insight Via ICS Via ICS Via ICS Via ICS
IC12M IC12D Connect Network MultiSync Enterprise
SOFTWARE PROGRAMMING
Max. Number of Configs. 256 256 Unlimited Unlimited Unlimited Unlimited
Max. Number of Steps 32 per config. 32 per config. 1 32 per config. 32 per config. 32 per config.
Prog. Params. Editable • • • • •
Gang Count • • • • •
Autoincrement • • • • •
Quick Setup • • • • •
Advanced Setup • • •
Config. Name Display only • • • •
CW/CCW Tightening • • • • •
Tubenut Operation • • • • •
Adjustable Acceleration • • •
Optional EOR for Each Step • • •
Synchronizing Spindles • •
Copy Protection • • • •
DATA ARCHIVING
Unlimited Unlimited Unlimited
No. of Stored EOR Records 200 1000 Unlimited (auto.)
(manual) (manual) (auto.)
Databases data can be transferred to ODBC ODBC
Back-up data to server • •
POWERHEAD
Powerhead Operation • •
Max. No. of Spindles in Powerhead 40 40
Max. No. of Groups 8 8
Fault Backout • •
None, spindle,
Fault Backout Options group,
powerhead
Final Fault Backout • •
None, spindle,
Final Fault Backout Options group,
powerhead
Synchronization Method Via CANBUS
SOFTWARE GENERAL
Date/Time Set • • • • •
System Name • • • •
Display Software versions • • • • •
Only ICS Only ICS Only ICS Only ICS
Language Selection •
Language Language Language Language
NTP Function • • • • •
E.O.R. Onscreen Filter • • • •
E.O.R. Viewable Onscreen Primary value only • • • • •
Load New Software via Ethernet • • • • • •
TOOL PROGRAMMING
TR Adjust • • • • •
ASC Adjust • • • • •
TR and ASC Reset • • • • •
X with ETA direct
Auto Calibration Function X with ETA
connect only
Torque Units Selection • • • • •
Start Mode Selection • • • • •
Tool Operation Selection • • • • •
Special Fn Switch Programming • • • • •
Configuration Mode Selection • • • • •
PM Alarms • • •
View Memory Chip Data • • • •
PASSWORDS
Number of Passwords 0 1 Unlimited Unlimited Unlimited Unlimited
Auto Timer Lockout •
Adjustable Lockout Timer •
STATISTICS
Sample and Population Stats • • • •
Cp, Cpk, Mean, SD, Capability, CAM,
Max. value, Min. value % No. Rejects, Cp, Cpk, Mean, SD, Capability, CAM, Max value,
Stats Values Calculated Min Value % No. Rejects, % No Pass, No. Rej Hi, No Rej Lo,
% No Pass, No. Rej Hi, No. Rej Lo, Mean Shift, Range, No.for sigma, Target.
Mean Shift, Range, No. for sigma
Stats Alarms • • •
Stats Alarms Output • •
Max. Sample Stats Size 200 1000 1000 1000 1000 1000
Powerhead Stats • • •
Mean Range Charts • • •
Histograms • • •
Pareto Chart • • •
Stats Email Alarms • •
Stats can be calculated from user defined data • • •
TIGHTENING CURVES
Curve Types Torque vs. Angle, Torque vs. Time, Current vs. Time, Current vs. Angle
Last Reject Last Reject
Max. No. of Curves Stored on Cont.
Last Cycle Last Cycle
Display Curves On Screen • • •
TIGHTENING CURVES
