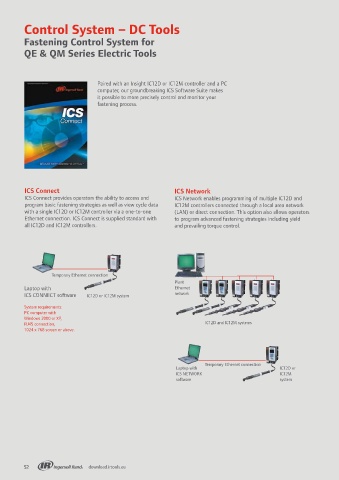

Control System – DC Tools
Fastening Control System for
QE & QM Series Electric Tools
Paired with an Insight IC12D or IC12M controller and a PC
computer, our groundbreaking ICS Software Suite makes
it possible to more precisely control and monitor your
fastening process.
ICS Connect ICS Network
ICS Connect provides operators the ability to access and ICS Network enables programming of multiple IC12D and
program basic fastening strategies as well as view cycle data IC12M controllers connected through a local area network
with a single IC12D or IC12M controller via a one-to-one (LAN) or direct connection. This option also allows operators
Ethernet connection. ICS Connect is supplied standard with to program advanced fastening strategies including yield
all IC12D and IC12M controllers. and prevailing torque control.
Temporary Ethernet connection
Plant
Laptop with Ethernet
ICS CONNECT software IC12D or IC12M system network
System requirements:
PC computer with
Windows 2000 or XP,
RJ45 connection, IC12D and IC12M systems
1024 x 768 screen or above.
Temporary Ethernet connection
Laptop with IC12D or
ICS NETWORK IC12M
software system
