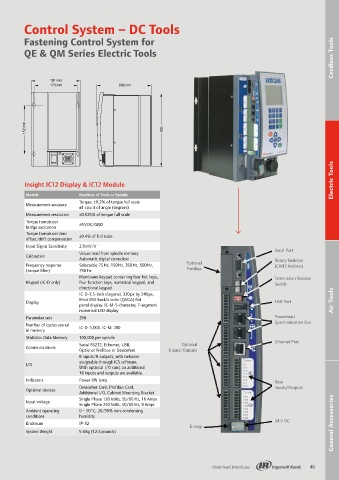

Control System – DC Tools

Fastening Control System for
Cordless Tools Cordless Tools
QE & QM Series Electric Tools

191 mm
173 mm 238 mm

152 mm 305

Electric Tools

Insight IC12 Display & IC12 Module
Models Numbers of Tools or Spindle
Torque: ±0.2% of torque full scale
Measurement accuracy
±1 count of angle (degrees)
Measurement resolution ±0.025% of torque full scale
Torque transducer ±5 VDC/GND
bridge excitation
Torque transducer zero ±0.4% of full scale
offset/drift compensation
Input Signal Sensitivity 2.0 mV/V
Serial Port
Values read from spindle memory
Calibration
Automatic digital correction Rotary Switches
Frequency response Selectable 75 Hz, 150 Hz, 350 Hz, 500 Hz, Optional (CAN2 Address)
(torque filter) 750 Hz Fieldbus
Membrane keypad containing four hot keys, Termination Resistor
Keypad (IC-D only) four function keys, numerical keypad, and Switch
directional keypad
IC-D-3.5-inch diagonal, 320 px by 240 px,
8-bit 65K backlit color (QVGA) flat Air Tools Air Tools
Display USB Port
panel display. IC-M-5-character, 7-segment
numerical LED display
Parameter sets 256 Powerhead
Synchronization Bus
Number of cycles stored IC-D: 1,000. IC-M: 200
in memory
Statistics Data Memory 100,000 per spindle
Ethernet Port
Serial RS232, Ethernet, USB, Optional
Communications
Optional Profibus or DeviceNet Inputs/Outputs
8 inputs/8 outputs, with behavior
assignable through ICS software.
I/O
With optional I/O card, an additional
16 inputs and outputs are available.
Indicators Power ON lamp Base
DeviceNet Card, Profibus Card, Inputs/Outputs
Optional devices
Additional I/O, Cabinet Mounting Bracket
Single Phase 120 Volts, 50/60 Hz, 16 Amps
Input voltage
Single Phase 230 Volts, 50/60 Hz, 8 Amps
Ambient operating 0 – 50°C, 20/90% non-condensing
conditions humidity
24 V DC
Enclosure IP-52 General Accessories General Accessories
E-stop
System Weight 5.6 kg (12.4 pounds)
