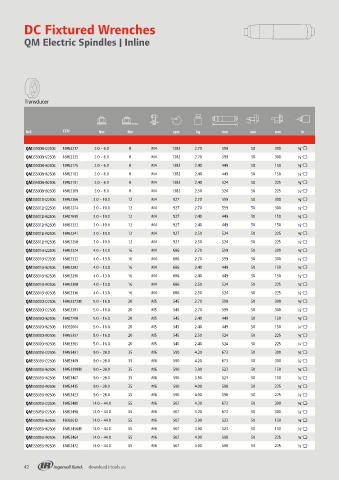

DC Fixtured Wrenches

QM Electric Spindles | Inline

Transducer

Ref. CCN Nm Nm rpm kg mm mm mm in

QM3SS008H22S06 18453217 2.0 – 6.0 8 M4 1382 2.70 599 50 300 3/8"
QM3SS008H22S08 18453225 2.0 – 6.0 8 M4 1382 2.70 599 50 300 1/2"
QM3SS008H62S06 18453175 2.0 – 6.0 8 M4 1382 2.40 449 50 150 3/8"
QM3SS008H62S08 18453183 2.0 – 6.0 8 M4 1382 2.40 449 50 150 1/2"
QM3SS008H92S06 18453191 2.0 – 6.0 8 M4 1382 2.40 524 50 225 3/8"
QM3SS008H92S08 18453209 2.0 – 6.0 8 M4 1382 2.50 524 50 225 1/2"
QM3SS012H22S06 18453266 3.0 – 10.0 12 M4 927 2.70 599 50 300 3/8"
QM3SS012H22S08 18453274 3.0 – 10.0 12 M4 927 2.70 599 50 300 1/2"
QM3SS012H62S06 18427690 3.0 – 10.0 12 M4 927 2.40 449 50 150 3/8"
QM3SS012H62S08 18453233 3.0 – 10.0 12 M4 927 2.40 449 50 150 1/2"
QM3SS012H92S06 18453241 3.0 – 10.0 12 M4 927 2.50 524 50 225 3/8"
QM3SS012H92S08 18453258 3.0 – 10.0 12 M4 927 2.50 524 50 225 1/2"
QM3SS016H22S06 18453324 4.0 – 13.0 16 M4 686 2.70 599 50 300 3/8"
QM3SS016H22S08 18453332 4.0 – 13.0 16 M4 686 2.70 599 50 300 1/2"
QM3SS016H62S06 18453282 4.0 – 13.0 16 M4 686 2.40 449 50 150 3/8"
QM3SS016H62S08 18453290 4.0 – 13.0 16 M4 686 2.40 449 50 150 1/2"
QM3SS016H92S06 18453308 4.0 – 13.0 16 M4 686 2.50 524 50 225 3/8"
QM3SS016H92S08 18453316 4.0 – 13.0 16 M4 686 2.50 524 50 225 1/2"
QM3SS020H22S06 18453373IRI 5.0 – 16.0 20 M5 545 2.70 599 50 300 3/8"
QM3SS020H22S08 18453381 5.0 – 16.0 20 M5 545 2.70 599 50 300 1/2"
QM3SS020H62S06 18427708 5.0 – 16.0 20 M5 545 2.40 449 50 150 3/8"
QM3SS020H62S08 16992604 5.0 – 16.0 20 M5 545 2.40 449 50 150 1/2"
QM3SS020H92S06 18453357 5.0 – 16.0 20 M5 545 2.50 524 50 225 3/8"
QM3SS020H92S08 18453365 5.0 – 16.0 20 M5 545 2.40 524 50 225 1/2"
QM5SS035H22S06 18453431 9.0 – 28.0 35 M6 590 4.20 673 50 300 3/8"
QM5SS035H22S08 18453449 9.0 – 28.0 35 M6 590 4.20 673 50 300 1/2"
QM5SS035H62S06 18453399IRI 9.0 – 28.0 35 M6 590 3.90 523 50 150 3/8"
QM5SS035H62S08 18453407 9.0 – 28.0 35 M6 590 3.90 523 50 150 1/2"
QM5SS035H92S06 18453415 9.0 – 28.0 35 M6 590 4.00 598 50 225 3/8"
QM5SS035H92S08 18453423 9.0 – 28.0 35 M6 590 4.00 598 50 225 1/2"
QM5SS055H22S06 18453480 14.0 – 44.0 55 M6 507 4.20 673 50 300 3/8"
QM5SS055H22S08 18453498 14.0 – 44.0 55 M6 507 4.20 673 50 300 1/2"
QM5SS055H62S06 16992612 14.0 – 44.0 55 M6 507 3.90 523 50 150 3/8"
QM5SS055H62S08 18453456IRI 14.0 – 44.0 55 M6 507 3.90 523 50 150 1/2"
QM5SS055H92S06 18453464 14.0 – 44.0 55 M6 507 4.00 598 50 225 3/8"
QM5SS055H92S08 18453472 14.0 – 44.0 55 M6 507 4.00 598 50 225 1/2"
