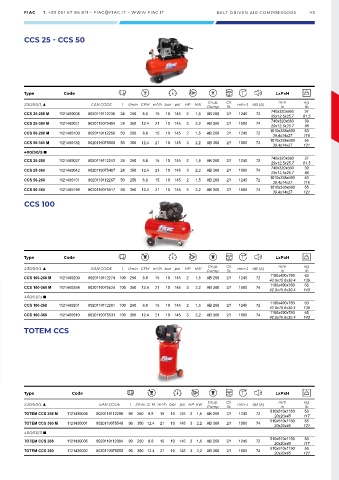

Page 45 - Kolvkompressorer_2022
P. 45
FIAC T. +39 051 67 86 811 – FIAC@FIAC.IT – WWW.FIAC.IT BELT DRIVEN AIR COMPRESSORS 43
CCS 25 - CCS 50
Type Code LxPxH
Grup. Cil. mm kg
3
230/50/1 m EAN CODE l l/min CFM m /h bar psi HP kW Pump St. min-1 dB (A) in lb
CCS 25-268 M 1121460008 8020119112236 24 250 8.8 15 10 145 2 1,5 AB 268 2/1 1240 72 740x320x660 37
29x12.5x25.7 81.5
CCS 25-360 M 1121460021 8020119075494 24 350 12.4 21 10 145 3 2,2 AB 360 2/1 1500 74 740x320x660 39
29x12.5x25.7 86
CCS 50-268 M 1121460100 8020119112250 50 250 8.8 15 10 145 2 1,5 AB 268 2/1 1240 72 1010x338x690 53
39.4x14x27 116
CCS 50-360 M 1121460182 8020119075500 50 350 12.4 21 10 145 3 2,2 AB 360 2/1 1500 74 1010x338x690 55
39.4x14x27 121
400/50/3 j
740x320x660 37
CCS 25-268 1121460027 8020119112243 24 250 8.8 15 10 145 2 1,5 AB 268 2/1 1240 72
29x12.5x25.7 81.5
740x320x660 39
CCS 25-360 1121460042 8020119075487 24 350 12.4 21 10 145 3 2,2 AB 360 2/1 1500 74
29x12.5x25.7 86
1010x338x690 53
CCS 50-268 1121460101 8020119112267 50 250 8.8 15 10 145 2 1,5 AB 268 2/1 1240 72
39.4x14x27 116
1010x338x690 55
CCS 50-360 1121460198 8020119075517 50 350 12.4 21 10 145 3 2,2 AB 360 2/1 1500 74
39.4x14x27 121
CCS 100
Type Code LxPxH
Grup. Cil. mm kg
3
230/50/1 m EAN CODE l l/min CFM m /h bar psi HP kW min-1 dB (A)
Pump St. in lb
1100x400x780 63
CCS 100-268 M 1121460200 8020119112274 100 250 8.8 15 10 145 2 1,5 AB 268 2/1 1240 72
42.9x15.6x30.4 139
1100x400x780 65
CCS 100-360 M 1121460354 8020119075524 100 350 12.4 21 10 145 3 2,2 AB 360 2/1 1500 74
42.9x15.6x30.4 143
400/50/3 j
CCS 100-268 1121460201 8020119112281 100 250 8.8 15 10 145 2 1,5 AB 268 2/1 1240 72 1100x400x780 63
42.9x15.6x30.4 139
1100x400x780 65
CCS 100-360 1121460910 8020119075531 100 350 12.4 21 10 145 3 2,2 AB 360 2/1 1500 74
42.9x15.6x30.4 143
TOTEM CCS
Type Code LxPxH
Grup. Cil. mm kg
3
230/50/1 m EAN CODE l l/min CFM m /h bar psi HP kW min-1 dB (A)
Pump St. in lb
TOTEM CCS 268 M 1121430004 8020119112298 90 250 8.8 15 10 145 2 1,5 AB 268 2/1 1240 72 510x510x1150 53
20x20x45 117
510x510x1150 55
TOTEM CCS 360 M 1121430001 8020119075548 90 350 12.4 21 10 145 3 2,2 AB 360 2/1 1500 74
20x20x45 121
400/50/3 j
510x510x1150 53
TOTEM CCS 268 1121430005 8020119112304 90 250 8.8 15 10 145 2 1,5 AB 268 2/1 1240 72
20x20x45 117
TOTEM CCS 360 1121430002 8020119075555 90 350 12.4 21 10 145 3 2,2 AB 360 2/1 1500 74 510x510x1150 55
20x20x45 121
