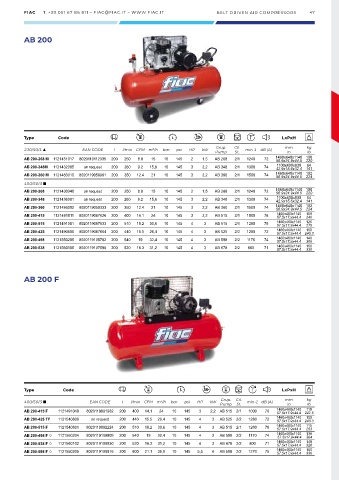

Page 49 - Kolvkompressorer_2022

FIAC T. +39 051 67 86 811 – FIAC@FIAC.IT – WWW.FIAC.IT BELT DRIVEN AIR COMPRESSORS 47

AB 200

Type Code LxPxH
Grup. Cil. mm kg
3
230/50/1 m EAN CODE l l/min CFM m /h bar psi HP kW min-1 dB (A)
Pump St. in lb
AB 200-268 M 1121431017 8020119112335 200 250 8.8 15 10 145 2 1,5 AB 268 2/1 1240 72 1460x640x1140 100
220
56.9x24.9x44.5
1100x400x830
64
AB 200-348M 1121432005 on request 200 260 9.2 15,6 10 145 3 2,2 AB 348 2/1 1300 74 42.9x15.6x32.4 141
AB 200-360 M 1121483010 8020119058961 200 350 12.4 21 10 145 3 2,2 AB 360 2/1 1500 74 1460x640x1140 102
224
56.9x24.9x44.5
400/50/3 j
AB 200-268 1121430040 on request 200 250 8.8 15 10 145 2 1,5 AB 268 2/1 1240 72 1460x640x1140 100
56.9x24.9x44.5
220
64
1100x400x830
AB 200-348 1121436001 on request 200 260 9.2 15,6 10 145 3 2,2 AB 348 2/1 1300 74 42.9x15.6x32.4 141
AB 200-360 1121486002 8020119059333 200 350 12.4 21 10 145 3 2,2 AB 360 2/1 1500 74 1460x640x1140 102
224
56.9x24.9x44.5
AB 200-415 1121491011 8020119087626 200 400 14.1 24 10 145 3 2,2 AB 515 2/1 1000 76 1460x460x1140 109
57.5x17.9x44.4
240
AB 200-515 1121491001 8020119087633 200 510 18.2 30,6 10 145 4 3 AB 515 2/1 1280 78 1460x460x1140 125
57.5x17.9x44.4
275
109
AB 200-425 1121490600 8020119087664 200 440 15.5 26,4 10 145 4 3 AB 525 2/2 1280 72 1460x460x1140 240.3
57.5x17.9x44.4
AB 200-498 1121550200 8020119105702 200 540 19 32,4 10 145 4 3 AB 598 2/2 1170 74 1460x460x1140 140
308
57.5x17.9x44.4
AB 200-538 1121560100 8020119107096 200 520 18.3 31,2 10 145 4 3 AB 678 2/2 800 71 1460x460x1140 150
57.5x17.9x44.4
330
AB 200 F

Type Code LxPxH
Grup. Cil. mm kg
3
400/50/3 j EAN CODE l l/min CFM m /h bar psi HP kW min-1 dB (A)
Pump St. in lb
110
AB 200-415 F 1121491040 8020119091982 200 400 14.1 24 10 145 3 2,2 AB 515 2/1 1000 76 1460x460x1140 242.5
57.5x17.9x44.4
109
AB 200-425 TF 1121540806 on request 200 440 15.5 26,4 10 145 4 3 AB 525 2/2 1280 72 1460x460x1140 240.3
57.5x17.9x44.4
AB 200-515 F 1121540801 8020119092224 200 510 18.2 30,6 10 145 4 3 AB 515 2/1 1280 78 1460x460x1140 115
57.5x17.9x44.4
253
1460x460x1140
AB 200-498 F e 1121550204 8020119109809 200 540 19 32,4 10 145 4 3 AB 598 2/2 1170 74 57.5x17.9x44.4 138
304
AB 200-538 F e 1121560102 8020119109830 200 520 18.3 31,2 10 145 4 3 AB 678 2/2 800 71 1460x460x1140 148
57.5x17.9x44.4
326
AB 200-598 F e 1121550205 8020119109816 200 600 21.1 35,9 10 145 5,5 4 AB 598 2/2 1270 75 1460x460x1140 150
57.5x17.9x44.4
330
