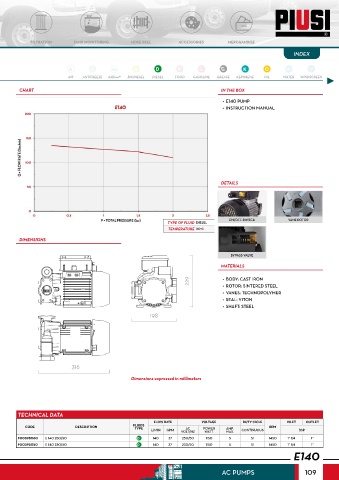

Page 109 - Piusi_Fuel
P. 109
FILTRATION TANK MONITORING HOSE REEL ACCESSORIES MERCHANDISE
INDEX
A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN
CHART IN THE BOX
• E140 PUMP
• INSTRUCTION MANUAL
DETAILS
ON/OFF SWITCH VANE ROTOR
TYPE OF FLUID DIESEL
TEMPERATURE 20°C
DIMENSIONS
BYPASS VALVE
MATERIALS
229 • BODY: CAST IRON
• ROTOR: SINTERED STEEL
• VANES: TECHNOPOLYMER
• SEAL: VITON
• SHAFT: STEEL
198
316
Dimensions expressed in millimeters
TECHNICAL DATA
FLOW RATE VOLTAGE DUTY CICLE INLET OUTLET
CODE DESCRIPTION FLUIDS L/MIN GPM VOLT/HZ POWER AMP. CONTINUOUS RPM BSP
TYPE
AC
MAX.
WATT
F00395060 E 140 250/50 D 140 37 250/50 1150 5 S1 1450 1” 1/4 1”
F00395050 E 140 230/50 D 140 37 230/50 1150 5 S1 1450 1” 1/4 1”
E140
AC PUMPS 109
