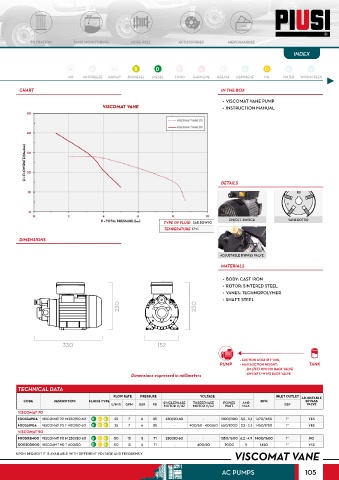

Page 105 - Piusi_Fuel

FILTRATION TANK MONITORING HOSE REEL ACCESSORIES MERCHANDISE
INDEX

A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

CHART IN THE BOX

• VISCOMAT VANE PUMP
• INSTRUCTION MANUAL

DETAILS

ON/OFF SWITCH VANE ROTOR
TYPE OF FLUID SAE 80W90
TEMPERATURE 17°C
DIMENSIONS

ADJUSTABLE BYPASS VALVE
MATERIALS
• BODY: CAST IRON
• ROTOR: SINTERED STEEL
• VANES: TECHNOPOLYMER
• SHAFT: STEEL
230 230

330 152

> SUCTION HOSE Ø 1” MIN,
PUMP > MAX SUCTION HEIGHT: TANK
- 2M (7FT) W/O NO BACK VALVE
Dimensions expressed in millimeters - 4M (14FT) W NO BACK VALVE
TECHNICAL DATA
FLOW RATE PRESSURE VOLTAGE INLET OUTLET ADJUSTABLE
CODE DESCRIPTION FLUIDS TYPE SINGLEPHASE THREEPHASE POWER AMP. RPM BYPASS
L/MIN GPM BAR PSI MOTOR V./HZ MOTOR V./HZ WATT MAX. BSP VALVE
VISCOMAT 70
F0033490A VISCOMAT 70 M 230/50-60 D O B 25 7 6 85 230/50-60 - 1200/1100 5,5 - 5,1 1470/1650 1” YES
F0033190A VISCOMAT 70 T 400/50-60 D O B 25 7 6 85 - 400/50 - 400/60 650/1000 2,2 - 3,1 1450/1750 1” YES
VISCOMAT 90
F00303M00 VISCOMAT 90 M 230/50-60 D O B 50 13 5 71 230/50-60 - 1350/1600 6,2 - 4,9 1400/1600 1” NO
000303000 VISCOAMT 90 T 400/50 D O B 50 13 5 71 - 400/50 2000 5 1450 1” YES
VISCOMAT VANE
UPON REQUEST IT IS AVAILABLE WITH DIFFERENT VOLTAGE AND FREQUENCY

AC PUMPS 105
