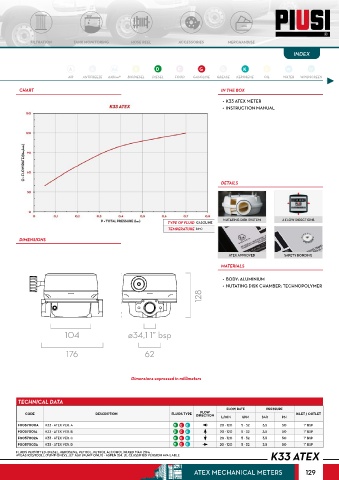

Page 129 - Piusi_Fuel

FILTRATION TANK MONITORING HOSE REEL ACCESSORIES MERCHANDISE
INDEX

A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

CHART IN THE BOX

• K33 ATEX METER
• INSTRUCTION MANUAL

DETAILS

NUTATING DISK SYSTEM 4 FLOW DIRECTIONS
TYPE OF FLUID GASOLINE
TEMPERATURE 16°C
DIMENSIONS

ATEX APPROVED SAFETY BONDING
MATERIALS
• BODY: ALUMINIUM
100 128 • NUTATING DISK CHAMBER: TECHNOPOLYMER

104 ø34,1 1” bsp

176 62

Dimensions expressed in millimeters

TECHNICAL DATA
FLOW RATE PRESSURE
FLOW
CODE DESCRIPTION FLUIDS TYPE DIRECTION L/MIN GPM BAR PSI INLET / OUTLET
F0057000A K33 - ATEX VER. A D G K 20 - 120 5 - 32 3,5 50 1” BSP
F0057001A K33 - ATEX VER. B D G K 20 - 120 5 - 32 3,5 50 1” BSP
F0057002A K33 - ATEX VER. C D G K 20 - 120 5 - 32 3,5 50 1” BSP
F0057003A K33 - ATEX VER. D D G K 20 - 120 5 - 32 3,5 50 1” BSP
FLUIDS PERMITTED: DIESEL, KEROSENE, PETROL, PETROL ALCOHOL MIXED MAX 20% ,
AVGAS 100/100LL (PUMP ONLY), JET A/A1 (PUMP ONLY) - ASPEN 2/4. UL CLASSIFIED VERSION AVAILABLE K33 ATEX

ATEX MECHANICAL METERS 129
