Page 130 - Piusi_Fuel

FUEL MANAGEMENT DISPENSERS KITS PUMPS METERS NOZZLES
METERS
SYSTEMS

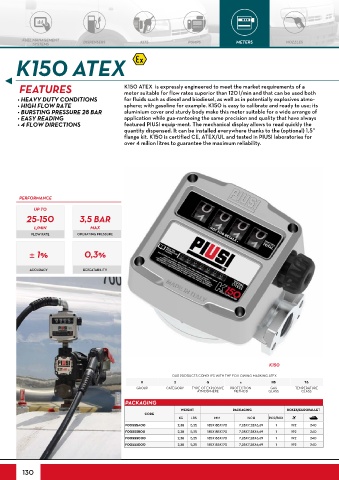

K150 ATEX

FEATURES K150 ATEX is expressly engineered to meet the market requirements of a
meter suitable for flow rates superior than 120 l/min and that can be used both
• HEAVY DUTY CONDITIONS for fluids such as diesel and biodiesel, as well as in potentially explosives atmo-
• HIGH FLOW RATE sphere; with gasoline for example. K150 is easy to calibrate and ready to use; its
• BURSTING PRESSURE 28 BAR aluminium cover and sturdy body make this meter suitable for a wide arrange of
• EASY READING application while gua-ranteeing the same precision and quality that have always
• 4 FLOW DIRECTIONS featured PIUSI equip-ment. The mechanical display allows to read quickly the
quantity dispensed. It can be installed everywhere thanks to the (optional) 1,5”
flange kit. K150 is certified CE, ATEX/UL and tested in PIUSI laboratories for
over 4 milion litres to guarantee the maximum reliability.

PERFORMANCE
UP TO
25-150 3,5 BAR
L/MIN MAX
FLOW RATE OPERATING PRESSURE

± 1% 0,3%

ACCURACY REPEATABILITY

K150

OUR PRODUCTS COMPLIES WITH THE FOLLOWING MARKING ATEX
II 2 G c IIB T6
GROUP CATEGORY TYPE OF EXPLOSIVE PROTECTION GAS TEMPERATURE
ATMOSPHERE METHOD GLASS CLASS
PACKAGING
WEIGHT PACKAGING BOXES/EUROPALLET
CODE
KG LBS MM INCH PCS/BOX
F00555A00 2,38 5,25 185X185X170 7,28X7,28X6,69 1 192 240
F00555B00 2,38 5,25 185X185X170 7,28X7,28X6,69 1 192 240
F00555C00 2,38 5,25 185X185X170 7,28X7,28X6,69 1 192 240
F00555D00 2,38 5,25 185X185X170 7,28X7,28X6,69 1 192 240

130
