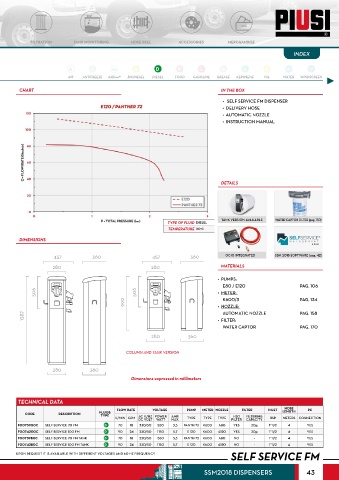

Page 43 - Piusi_Fuel

FILTRATION TANK MONITORING HOSE REEL ACCESSORIES MERCHANDISE
INDEX

A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

CHART IN THE BOX

• SELF SERVICE FM DISPENSER
• DELIVERY HOSE
• AUTOMATIC NOZZLE
• INSTRUCTION MANUAL

DETAILS

TANK VERSION AVAILABLE WATER CAPTOR FILTER (pag. 170)
TYPE OF FLUID DIESEL
TEMPERATURE 20°C
DIMENSIONS

457 360 457 360 OCIO INTEGRATED SSM 2018 SOFTWARE (pag. 42)
280 280 MATERIALS
• PUMPS:
E80 / E120 PAG. 106
506 506 • METER:
K600/3
990 • NOZZLE: PAG. 134
AUTOMATIC NOZZLE
1387 • FILTER: PAG. 158
WATER CAPTOR PAG. 170
280 360

COLUMN AND TANK VERSION

280 360
Dimensions expressed in millimeters

TECHNICAL DATA
HOSE
FLOW RATE VOLTAGE PUMP METER NOZZLE FILTER INLET LENGTH PC
CODE DESCRIPTION FLUIDS
TYPE
H20
L/MIN GPM AC V./HZ POWER AMP. TYPE TYPE TYPE FILTER FILTERING BSP METERS CONNECTION
WATT
CAPACITY
DC VOLT
MAX.
F0073900C SELF SERVICE 70 FM D 70 18 230/50 550 3,3 PANTH 72 K600 A80 YES 30µ 1” 1/2 4 YES
F0074200C SELF SERVICE 100 FM D 90 24 230/50 1150 5,7 E 120 K600 A120 YES 30µ 1” 1/2 4 YES
F00739B0C SELF SERVICE 70 FM TANK D 70 18 230/50 550 3,3 PANTH 72 K600 A80 NO - 1” 1/2 4 YES
F00742B0C SELF SERVICE 100 FM TANK D 90 24 230/50 1150 5,7 E 120 K600 A120 NO - 1” 1/2 4 YES
SELF SERVICE FM
UPON REQUEST IT IS AVAILABLE WITH DIFFERENT VOLTAGES AND 60 HZ FREQUENCY
SSM2018 DISPENSERS 43
