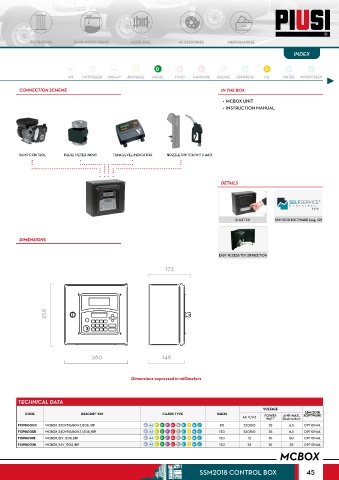

Page 45 - Piusi_Fuel
P. 45
FILTRATION TANK MONITORING HOSE REEL ACCESSORIES MERCHANDISE
INDEX
A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN
COMPONENTSTION SCHEME
C
ONNE
CHART C IN THE BOX
• MCBOX UNIT
• INSTRUCTION MANUAL
PUMP CONTROL PULSE METER INPUT TANK LEVEL INDICATOR NOZZLE SWITCH WITH A
DETAILS
SHUTTER SSM 2018 SOFTWARE (pag. 42)
DIMENSIONS
EASY ACCESS TO CONNECTION
172 MATERIALS
256
260 146
Dimensions expressed in millimeters
TECHNICAL DATA
VOLTAGE
CODE DESCRIPTION FLUIDS TYPE USERS SSM 2018
AMP. MAX.
AC V./HZ POWER (load motor) SOFTWARE
WATT
F1398000C MCBOX_230V50/60HZ_80U_IBP A Ad B D F G G K O W W S 80 230/50 35 6,5 OPTIONAL
R
F1398005B MCBOX_230V50/60HZ_120U_IBP A Ad B D F G G K O W W S 120 230/50 35 6,5 OPTIONAL
R
F1398001B MCBOX_12V_120U_IBP A Ad B D F G G K O W W S 120 12 10 50 OPTIONAL
R
R
F1398002B MCBOX_24V_120U_IBP A Ad B D F G G K O W W S 120 24 10 25 OPTIONAL
MCBOX
SSM2018 CONTROL BOX 45
