Page 50 - Piusi_Fuel

FUEL MANAGEMENT DISPENSERS KITS PUMPS METERS NOZZLES
DISPENSERS
SYSTEMS

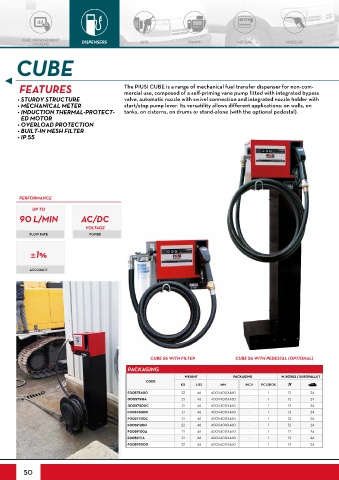

CUBE

FEATURES The PIUSI CUBE is a range of mechanical fuel transfer dispenser for non-com-
mercial use, composed of a self-priming vane pump fitted with integrated bypass
• STURDY STRUCTURE valve, automatic nozzle with swivel connection and integrated nozzle holder with
• MECHANICAL METER start/stop pump lever. Its versatility allows different applications: on walls, on
• INDUCTION THERMAL-PROTECT- tanks, on cisterns, on drums or stand-alone (with the optional pedestal).
ED MOTOR
• OVERLOAD PROTECTION
• BUILT-IN MESH FILTER
• IP 55

PERFORMANCE
UP TO
90 L/MIN AC/DC
VOLTAGE
FLOW RATE POWER

±1%

ACCURACY

CUBE 56 WITH FILTER CUBE 56 WITH PEDESTAL (OPTIONAL)
PACKAGING
WEIGHT PACKAGING N. BOXES / EUROPALLET
CODE
KG LBS MM INCH PCS/BOX
F00575400 22 46 400X400X460 - 1 12 24
00057516A 21 46 400X400X460 - 1 12 24
00057500C 21 46 400X400X460 - 1 12 24
F0057600C 21 46 400X400X460 - 1 12 24
F0057700C 21 46 400X400X460 - 1 12 24
F00591200 22 48 400X400X460 - 1 12 24
F0059100A 21 46 400X400X460 - 1 12 24
F0059111A 21 46 400X400X460 - 1 12 24
F00592000 22 46 400X400X460 - 1 12 24

50
