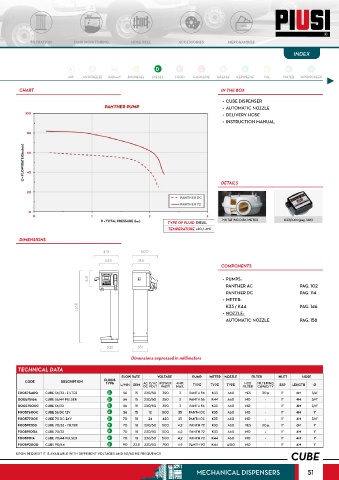

Page 51 - Piusi_Fuel

FILTRATION TANK MONITORING HOSE REEL ACCESSORIES MERCHANDISE
INDEX

A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

CHART IN THE BOX

• CUBE DISPENSER
• AUTOMATIC NOZZLE
• DELIVERY HOSE
• INSTRUCTION MANUAL

DETAILS

NUTATING DISK METER K33/K44 (pag. 146)
TYPE OF FLUID DIESEL
TEMPERATURE +20 / -6°C
DIMENSIONS
413 500
345 314
MATERIALS
COMPONENTS
341 • PUMPS:
PANTHER AC PAG. 102
PANTHER DC PAG. 114
• METER:
1368 K33 / K44 PAG. 146
• NOZZLE:
AUTOMATIC NOZZLE PAG. 158

336 281

Dimensions expressed in millimeters
TECHNICAL DATA
FLOW RATE VOLTAGE PUMP METER NOZZLE FILTER INLET HOSE
CODE DESCRIPTION FLUIDS L/MIN GPM AC V./HZ POWER MAX. TYPE TYPE TYPE FILTER FILTERING BSP LENGTH Ø
TYPE
H20
AMP.
CAPACITY
WATT
DC VOLT
F00575400 CUBE 56/33 + FILTER D 56 15 230/50 350 3 PANTH 56 K33 A60 YES 30 µ 1” 6M 3/4”
00057516A CUBE 56/44 PULSER D 56 15 230/50 350 3 PANTH 56 K44 A60 NO - 1” 4M 3/4”
00057500C CUBE 56/33 D 56 15 230/50 350 3 PANTH 56 K33 A60 NO - 1” 4M 3/4”
F0057600C CUBE 56 DC 12V D 56 15 12 300 35 PANTH DC K33 A60 NO - 1” 4M 1”
F0057700C CUBE 70 DC 24V D 70 18 24 420 25 PANTH DC K33 A60 NO - 1” 4M 3/4”
F00591200 CUBE 70/33 + FILTER D 70 18 230/50 500 4,2 PANTH 72 K33 A60 YES 30 µ 1” 6M 1”
F0059100A CUBE 70/33 D 70 18 230/50 500 4,2 PANTH 72 K33 A60 NO - 1” 4M 1”
F0059111A CUBE 70/44 PULSER D 70 18 230/50 500 4,2 PANTH 72 K44 A60 NO - 1” 4M 1”
F00592000 CUBE 90/44 D 90 23,8 230/50 700 4,9 PANTH 90 K44 A120 NO - 1” 4M 1”
CUBE
UPON REQUEST IT IS AVAILABLE WITH DIFFERENT VOLTAGES AND 50/60 HZ FREQUENCY

MECHANICAL DISPENSERS 51
