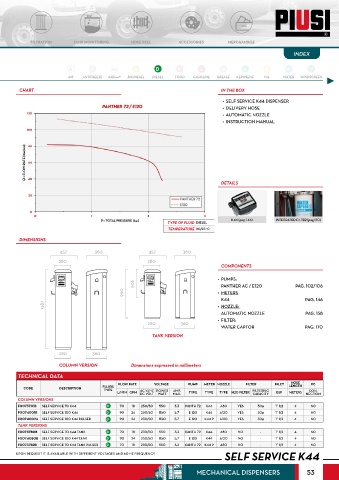

Page 53 - Piusi_Fuel

FILTRATION TANK MONITORING HOSE REEL ACCESSORIES MERCHANDISE
INDEX

A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

CHART IN THE BOX

• SELF SERVICE K44 DISPENSER
• DELIVERY HOSE
• AUTOMATIC NOZZLE
• INSTRUCTION MANUAL

DETAILS

K44 (pag. 146) INTEGRATED FILTER (pag.170)
TYPE OF FLUID DIESEL
TEMPERATURE 20/23 °C
DIMENSIONS
457 360 457 360
280 280
COMPONENTS
MATERIALS
• PUMPS:
506 PANTHER AC / E120 PAG. 102/106
990 • METERS
K44 PAG. 146
1387 • NOZZLE:
AUTOMATIC NOZZLE PAG. 158
• FILTER:
280 360
WATER CAPTOR PAG. 170
TANK VERSION

280 360
COLUMN VERSION Dimensions expressed in millimeters

TECHNICAL DATA
HOSE
FLOW RATE VOLTAGE PUMP METER NOZZLE FILTER INLET LENGTH PC
CODE DESCRIPTION FLUIDS
TYPE
CON-
L/MIN GPM AC V./HZ POWER AMP. TYPE TYPE TYPE H20 FILTER FILTERING BSP METERS NECTION
CAPACITY
DC VOLT
MAX.
WATT
COLUMN VERSIONS
F0073701B SELF SERVICE 70 K44 D 70 18 230/50 550 3,3 PANTH 72 K44 A80 YES 30µ 1” 1/2 4 NO
F0074001B SELF SERVICE 100 K44 D 90 24 230/50 1150 5,7 E 120 K44 A120 YES 30µ 1” 1/2 4 NO
F0074002A SELF SERVICE 100 K44 PULSER D D 90 24 230/50 1150 5,7 E 120 K44 P A120 YES 30µ 1” 1/2 4 NO
TANK VERSIONS
F00737B0B SELF SERVICE 70 K44 TANK D 70 18 230/50 550 3,3 PANTH 72 K44 A80 NO - 1” 1/2 4 NO
F00740B0B SELF SERVICE 100 K44 TANK D 90 24 230/50 1150 5,7 E 120 K44 A120 NO - 1” 1/2 4 NO
F00737B2B SELF SERVICE 70 K44 TANK PULSER D 70 18 230/50 550 3,3 PANTH 72 K44 P A80 NO - 1” 1/2 4 NO
SELF SERVICE K44
UPON REQUEST IT IS AVAILABLE WITH DIFFERENT VOLTAGES AND 60 HZ FREQUENCY
MECHANICAL DISPENSERS 53
