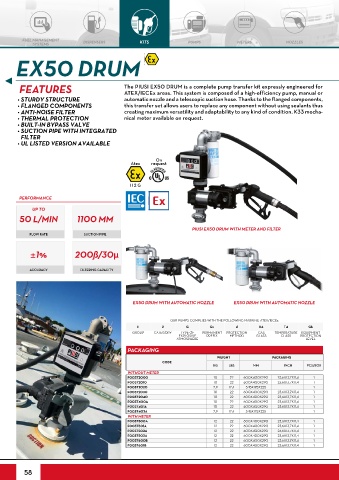

EX50 DRUM

FEATURES The PIUSI EX50 DRUM is a complete pump transfer kit expressly engineered for
ATEX/IECEx areas. This system is composed of a high-efficiency pump, manual or
• STURDY STRUCTURE automatic nozzle and a telescopic suction hose. Thanks to the flanged components,
• FLANGED COMPONENTS this transfer set allows users to replace any component without using sealants thus
• ANTI-NOISE FILTER creating maximum versatility and adaptability to any kind of condition. K33 mecha-
• THERMAL PROTECTION nical meter available on request.
• BUILT-IN BYPASS VALVE
• SUCTION PIPE WITH INTEGRATED
FILTER
• UL LISTED VERSION AVAILABLE

On
Atex request

II 2 G

PERFORMANCE
UP TO
50 L/MIN 1100 MM

PIUSI EX50 DRUM WITH METER AND FILTER
FLOW RATE SUCTION PIPE

±1% 200ß/30µ

ACCURACY FILTERING CAPACITY

EX50 DRUM WITH AUTOMATIC NOZZLE EX50 DRUM WITH AUTOMATIC NOZZLE

OUR PUMPS COMPLIES WITH THE FOLLOWING MARKING ATEX/IECEx
II 2 G Ex d IIA T4 Gb
GROUP CATEGORY TYPE OF PERMANENT PROTECTION GAS TEMPERATURE EQUIPMENT
EXPLOSIVE PREFIX METHOD GLASS CLASS PROTECTION
ATMOSPHERE LEVEL
PACKAGING
WEIGHT PACKAGING
CODE
KG LBS MM INCH PCS/BOX
WITHOUT METER
F00372000 10 22 600X400X290 23,6X13,7X11,4 1
F00372010 10 22 600X400X290 23,6X13,7X11,4 1
F00372020 7,9 17,4 345X175X225 - 1
F00372030 10 22 600X400X290 23,6X13,7X11,4 1
F00372040 10 22 600X400X290 23,6X13,7X11,4 1
F0037400A 10 22 600X400X290 23,6X13,7X11,4 1
F0037401A 10 22 600X400X290 23,6X13,7X11,4 1
F0037402A 7,9 17,4 345X175X225 - 1
WITH METER
F0037500A 12 22 600X400X290 23,6X13,7X11,4 1
F0037501A 12 22 600X400X290 23,6X13,7X11,4 1
F0037502A 12 22 600X400X290 23,6X13,7X11,4 1
F0037503A 12 22 600X400X290 23,6X13,7X11,4 1
F0037600B 12 22 600X400X290 23,6X13,7X11,4 1
F0037601B 12 22 600X400X290 23,6X13,7X11,4 1
