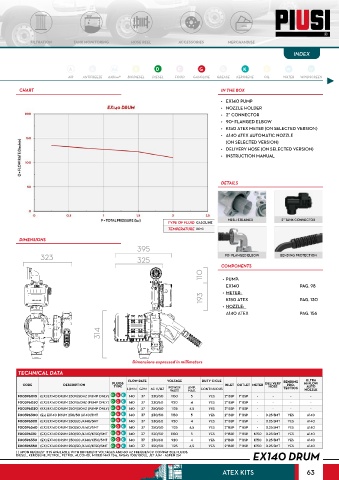

Page 63 - Piusi_Fuel

FILTRATION TANK MONITORING HOSE REEL ACCESSORIES MERCHANDISE
INDEX

A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

CHART IN THE BOX

• EX140 PUMP
• NOZZLE HOLDER
• 2” CONNECTOR
• 90° FLANGED ELBOW
• K150 ATEX METER (ON SELECTED VERSION)
• A140 ATEX AUTOMATIC NOZZLE
(ON SELECTED VERSION)
• DELIVERY HOSE (ON SELECTED VERSION)
• INSTRUCTION MANUAL

DETAILS

MESH STRAINER 2” TANK CONNECTOR
TYPE OF FLUID GASOLINE
TEMPERATURE 20°C
DIMENSIONS
395
323 325 90° FLANGED ELBOW BENDING PROTECTION

MATERIALS
COMPONENTS
110 • PUMP:
EX140 PAG. 98
• METER:
193 K150 ATEX PAG. 130
• NOZZLE:
A140 ATEX PAG. 156

314

Dimensions expressed in millimeters
TECHNICAL DATA
FLOW RATE VOLTAGE DUTY CICLE BENDING ULTRA
CODE DESCRIPTION FLUIDS INLET OUTLET METER DELIVERY PRO- HI-FLOW
TYPE
AUTO
HOSE
L/MIN GPM AC V./HZ POWER AMP. CONTINUOUS TECTION NOZZLE
MAX.
WATT
F00396010 (EX) EX140 DRUM 230V/50HZ (PUMP ONLY) D G K 140 37 230/50 1150 5 YES 2" BSP 1" BSP - - - -
F00396030 (EX) EX140 DRUM 230V/60HZ (PUMP ONLY) D G K 140 37 230/60 920 4 YES 2" BSP 1" BSP - - - -
F00396020 (EX) EX140 DRUM 250V/50HZ (PUMP ONLY) D G K 140 37 250/50 1125 4,5 YES 2" BSP 1" BSP - - - -
F00396300 (Ex) EX140 DRUM 230/50 /A140/5MT D G K 140 37 230/50 1150 5 YES 2" BSP 1" BSP - D.25 5MT YES A140
F00396320 (EX) EX140 DRUM 230/60 /A140/5MT D G K 140 37 230/60 920 4 YES 2" BSP 1" BSP - D.25 5MT YES A140
F00396340 (EX) EX140 DRUM 250/50 /A140/5MT D G K 140 37 250/50 1125 4,5 YES 2" BSP 1" BSP - D.25 5MT YES A140
F00396310 (EX) EX140 DRUM 230/50 /A140/K150/5MT D G K 140 37 230/50 1150 5 YES 2" BSP 1" BSP K150 D.25 5MT YES A140
F00396330 (EX) EX140 DRUM 230/60 /A140/K150/5MT D G K 140 37 230/60 920 4 YES 2" BSP 1" BSP K150 D.25 5MT YES A140
F00396350 (EX) EX140 DRUM 250/50 /A140/K150/5MT D G K 140 37 250/50 1125 4,5 YES 2" BSP 1" BSP K150 D.25 5MT YES A140
( ) UPON REQUEST IT IS AVAILABLE WITH DIFFERENT VOLTAGES AND 60 HZ FREQUENCY. COMPATIBLE FLUIDS:
DIESEL, KEROSENE, PETROL, PETROL ALCOHOL MIXED MAX 15%, AVGAS 100/100LL, JET A/A1 - ASPEN 2/4 EX140 DRUM
ATEX KITS 63
