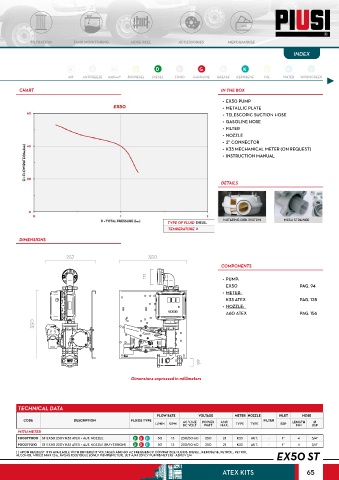

Page 65 - Piusi_Fuel

FILTRATION TANK MONITORING HOSE REEL ACCESSORIES MERCHANDISE
INDEX

A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

CHART IN THE BOX

• EX50 PUMP
• METALLIC PLATE
• TELESCOPIC SUCTION HOSE
• GASOLINE HOSE
• FILTER
• NOZZLE
• 2” CONNECTOR
• K33 MECHANICAL METER (ON REQUEST)
• INSTRUCTION MANUAL

DETAILS

NUTATING DISK SYSTEM MESH STRAINER
TYPE OF FLUID DIESEL
TEMPERATURE 2
DIMENSIONS

257 350

MATERIALS
COMPONENTS
111 • PUMP:
EX50 PAG. 94
• METER:
K33 ATEX PAG. 128
• NOZZLE:
A60 ATEX PAG. 156
350

46
Dimensions expressed in millimeters

TECHNICAL DATA
FLOW RATE VOLTAGE METER NOZZLE INLET HOSE
CODE DESCRIPTION FLUIDS TYPE AC V./HZ POWER AMP. FILTER LENGTH Ø
L/MIN GPM DC VOLT WATT MAX. TYPE TYPE BSP MM BSP
WITH METER
F00377000 ST EX50 230V K33 ATEX + AUT. NOZZLE D G K 50 13 230/50-60 250 21 K33 AUT. - 1” 4 3/4”
F00377010 ST EX50 230V K33 ATEX + AUT. NOZZLE (RU VERSION) D G K 50 13 230/50-60 250 21 K33 AUT. - 1” 4 3/4”
( ) UPON REQUEST IT IS AVAILABLE WITH DIFFERENT VOLTAGES AND 60 HZ FREQUENCY. COMPATIBLE FLUIDS: DIESEL, KEROSENE, PETROL, PETROL
ALCOHOL MIXED MAX 15%, AVGAS 100/100LL (ONLY PUMP&METER), JET A/A1 (ONLY PUMP&METER) - ASPEN 2/4 EX50 ST

ATEX KITS 65
