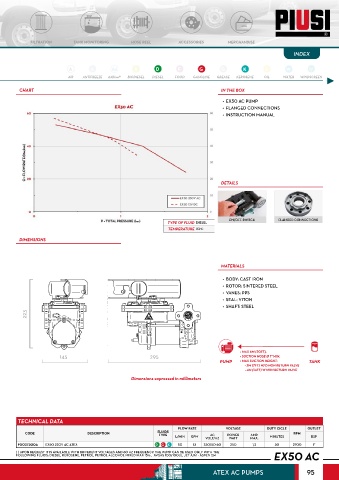

P. 95
FILTRATION TANK MONITORING HOSE REEL ACCESSORIES MERCHANDISE
INDEX
A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN
CHART IN THE BOX
• EX50 AC PUMP
• FLANGED CONNECTIONS
• INSTRUCTION MANUAL
DETAILS
ON/OFF SWITCH FLANGED CONNECTIONS
TYPE OF FLUID DIESEL
TEMPERATURE 23°C
DIMENSIONS
MATERIALS
• BODY: CAST IRON
• ROTOR: SINTERED STEEL
• VANES: PPS
• SEAL: VITON
• SHAFT: STEEL
223
> MAX 6M (20FT),
145 295 > SUCTION HOSE Ø 1” MIN,
PUMP > MAX SUCTION HEIGHT: TANK
- 2M (7FT) W/O NON RETURN VALVE
- 4M (14FT) W NON RETURN VALVE
Dimensions expressed in millimeters
TECHNICAL DATA
FLOW RATE VOLTAGE DUTY CICLE OUTLET
CODE DESCRIPTION FLUIDS L/MIN GPM VOLT/HZ POWER AMP. MINUTES RPM BSP
TYPE
AC
MAX.
WATT
F0037300A EX50 230V AC ATEX D G K 50 13 230/50-60 250 1,2 30 2700 1”
( ) UPON REQUEST IT IS AVAILABLE WITH DIFFERENT VOLTAGES AND 60 HZ FREQUENCY. THE PUMP CAN BE USED ONLY WITH THE
FOLLOWING FLUIDS: DIESEL, KEROSENE, PETROL, PETROL ALCOHOL MIXED MAX 15% , AVGAS 100/100LL, JET A/A1 - ASPEN 2/4 EX50 AC
ATEX AC PUMPS 95
