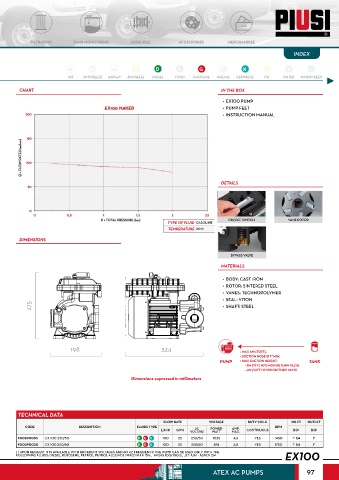

Page 97 - Piusi_Fuel

FILTRATION TANK MONITORING HOSE REEL ACCESSORIES MERCHANDISE
INDEX

A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

CHART IN THE BOX

• EX100 PUMP
• PUMP FEET
• INSTRUCTION MANUAL

DETAILS

ON/OFF SWITCH VANE ROTOR
TYPE OF FLUID GASOLINE
TEMPERATURE 20°C
DIMENSIONS

BYPASS VALVE
MATERIALS
• BODY: CAST IRON
• ROTOR: SINTERED STEEL
• VANES: TECHNOPOLYMER
• SEAL: VITON
275 • SHAFT: STEEL

198 324 > MAX 6M (20FT),
> SUCTION HOSE Ø 1” MIN,
PUMP > MAX SUCTION HEIGHT: TANK
- 2M (7FT) W/O NON RETURN VALVE
- 4M (14FT) W NON RETURN VALVE
Dimensions expressed in millimeters

TECHNICAL DATA
FLOW RATE VOLTAGE DUTY CICLE INLET OUTLET
CODE DESCRIPTION FLUIDS TYPE AC POWER AMP. RPM
L/MIN GPM VOLT/HZ WATT MAX. CONTINUOUS BSP BSP
F00390010 EX 100 230/50 D G K 100 25 230/50 1035 4,5 YES 1450 1” 1/4 1”
F00390020 EX 100 230/60 D G K 100 25 230/60 874 3,8 YES 1750 1” 1/4 1”
( ) UPON REQUEST IT IS AVAILABLE WITH DIFFERENT VOLTAGES AND 60 HZ FREQUENCY. THE PUMP CAN BE USED ONLY WITH THE
FOLLOWING FLUIDS: DIESEL, KEROSENE, PETROL, PETROL ALCOHOL MIXED MAX 15% , AVGAS 100/100LL, JET A/A1 - ASPEN 2/4 EX100

ATEX AC PUMPS 97
