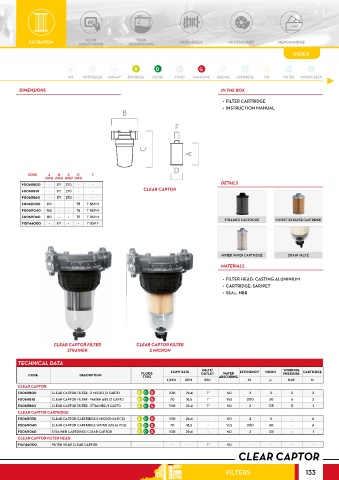

Page 133 - Piusi_Lube

B
C F
A

D

FILTRATION
FILTRATION FLUID TANK HOSE REELS ACCESSORIES MERCHANDISE
MONITORING B MONITORING
F INDEX
A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN
C
A
CHART
DIMENSIONS IN THE BOX
D • FILTER CARTRIDGE
• INSTRUCTION MANUAL
B

F

C
A

D
CODE A B C D F
(MM) (MM) (MM) (MM)
DETAILS
F00611B00 - 171 270 - -
F00611B10 - 171 270 - - CLEAR CAPTOR
F00611B60 - 171 270 - -
F00611030 110 - - 75 1” BSP M
F00611040 155 - - 75 1” BSP M
F00611060 110 - - 75 1” BSP M
STRAINER CARTRIDGE IMPURITIES PAPER CARTRIDGE
F15744000 - 171 - - 1” BSP F

DIMENSIONS

WATER PAPER CARTRIDGE DRAIN VALVE
MATERIALS
• FILTER HEAD: CASTING ALUMINIUM
• CARTRIDGE: SAP/PET
• SEAL: NBR

CLEAR CAPTOR FILTER CLEAR CAPTOR FILTER
STRAINER 5 MICRON

TECHNICAL DATA
INLET/
PRESSURE
WATER
CODE DESCRIPTION FLUIDS FLOW RATE OUTLET ABSORBING EFFICIENCY MICRO WORKING CARTRIDGE
TYPE
L/MIN GPM BSP SS µ BAR N°
CLEAR CAPTOR
F00611B00 CLEAR CAPTOR FILTER - 5 MICRO /2 CARTD B D G 100 26,4 1” NO 2 5 5 2
F00611B10 CLEAR CAPTOR FILTER - WATER ABS /2 CARTD B D G 70 18,5 1” YES 200 30 5 2
F00611B60 CLEAR CAPTOR FILTER - STRAINER /1 CARTD B D G 100 26,4 1” NO 2 125 5 1
CLEAR CAPTOR CARTRIDGE
F00611030 CLEAR CAPTOR CARTRIDGE 5 MICRON (6 PCS) B D G 100 26,4 - NO 2 5 - 6
F00611040 CLEAR CAPTOR CARTRIDGE WATER ABS (6 PCS) B D G 70 18,5 - YES 200 30 - 6
F00611060 STRAINER CARTDRIGE CLEAR CAPTOR B D G 100 26,4 - NO 2 125 - 1
CLEAR CAPTOR FILTER HEAD
F15744000 FILTER HEAD CLEAR CAPTOR - - 1” NO - - - -
CLEAR CAPTOR

FILTERS 133
