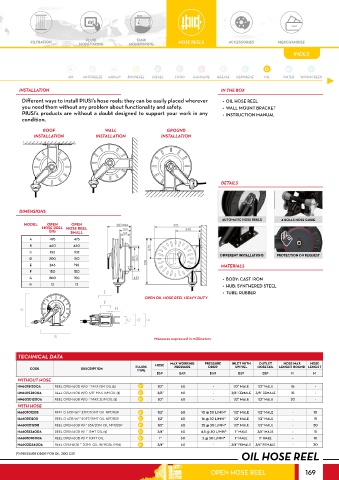

HOSE REELS
MONITORING MONITORING
INDEX
A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

INSTALLATION IN THE BOX
Different ways to install PIUSI’s hose reels: they can be easily placed wherever • OIL HOSE REEL
you need them without any problem about functionality and safety. • WALL MOUNT BRACKET
PIUSI’s products are without a doubt designed to support your work in any • INSTRUCTION MANUAL
condition.

ROOF WALL GROUND
INSTALLATION INSTALLATION INSTALLATION

DETAILS

DIMENSIONS
AUTOMATIC HOSE REELS 4 ROLLS HOSE GUIDE
MODEL OPEN OPEN
HOSE REEL HOSE REEL
BIG SMALL
A 495 475
B 460 460
C 152 102
DIFFERENT INSTALLATIONS PROTECTION ON REQUEST
D 200 150
E 246 196 MATERIALS
F 150 150
G 200 150 • BODY: CAST IRON
H 12 12 • HUB: SYNTHERED STEEL
D • TUBE: RUBBER
OPEN OIL HOSE REEL HEAVY DUTY
F
A H
C G E

B Measures expressed in millimeters

TECHNICAL DATA
OUTLET
HOSE MAX
HOSE
SWIVEL
DROP
PRESSURE
CODE DESCRIPTION FLUIDS HOSE MAX WORKING PRESSURE INLET WITH HOSETAIL LENGHT BOUND LENGHT
TYPE
BSP BAR BAR BSP BSP M M
WITHOUT HOSE
HN60151200A REEL OPEN 60B W/O ½” MAX 15M OIL ($) O 1/2” 60 - 1/2” MALE 1/2” MALE 15 -
HN60153800A REEL OPEN 60B W/O 3/8” MAX 15M OIL ($) O 3/8” 60 - 3/8” FEMALE 3/8” FEMALE 15 -
HN60201200A REEL OPEN 60B W/O ½” MAX 20M OIL ($) O 1/2” 60 - 1/2” MALE 1/2” MALE 20 -
WITH HOSE
HA6010120B REEL O 60B W/½” 33FT/10MT OIL NPT/BSP O 1/2” 60 10 @ 30 L/MIN* 1/2” MALE 1/2” MALE - 10
HA6015120B REEL O 60B W/½” 50FT/15MT OIL NPT/BSP O 1/2” 60 16 @ 30 L/MIN* 1/2” MALE 1/2” MALE - 15
HA6020120B REEL OPEN 60B W/½” 65F/20M OIL NPT/BSP O 1/2” 60 25 @ 30 L/MIN* 1/2” MALE 1/2” MALE - 20
HA60153400A REEL OPEN 60B W/ ¾” 15MT OIL ($) O 3/4” 60 4,5 @ 30 L/MIN* 1” MALE 3/4” MALE - 15
HA60101000A REEL OPEN 60B W/ 1” 10MT OIL O 1” 60 2 @ 30 L/MIN* 1” MALE 1” MALE - 10
HA60203400A REEL OPEN60B ¾” 20MT OIL IN/HOSE 1M($) O 3/4” 60 - 3/4” FEMALE 3/4” FEMALE - 20
OIL HOSE REEL
(*) PRESSURE DROP FOR OIL 200 CST

OPEN HOSE REEL 169
