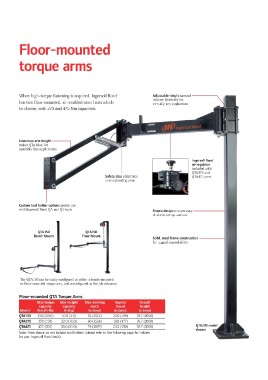

Page 4 - QTA Series Torque Reaction Arms

Floor-mounted Adjustable height control --------..
torque arms delivers flexibility for
virtually any application
When high-torque fastening is required, Ingerson Rand
has two floor-mounted, air-enabled arms from which
to choose, with 270 and 475 Nm capacities.

Generous arm length ------,
makes QTA ideal for
assembly Iine applications

Safety stop eliminates lngersoll Rand
over-extending arms air regulator
included with
QTA270 and
QTA475 arms

Custom tool holder options permit use Simple design ensures easy; - - - - - ---f
with Ingersoll Rand QA and QE tools effective set-up and use

QTAlSO QTAlSO Solid, steel frame construction - - - - --1
Bench Mount Floor Mount for rugged dependability

The QTA150 can be easily configured as either a bench-mounted
or floor-mounted torque arm, and reconfigured as the job demands

Floor-mounted QTA Torque Arms

Mode! Max torque Max weight Max working Approx Overall
capacity capacity reach trave! height
Nm (ft-lb) lb (kg) in (mm) in (mm)
in (mm)

QTAlSO 150 (110.6) 10.0 (4.5) 52 (1321) 22.0 (559) 78.7 (2000)

QTA270 270 (199) 22.0 (10.0) 60 (1524) 18.8 (477) 78.7 (2000)

QTA475 475 (350) 50.6 (23 0) 79 (2007) 23.2 (590) 78.7 (2000)

Note: Arms above do not include tool holders (please refe r to t he following page for holders
for your lngersoll Rand tools).
