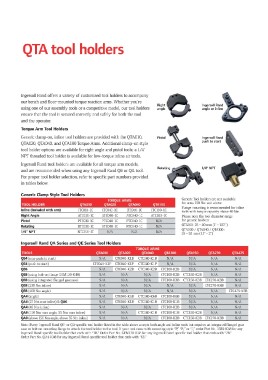

Page 5 - QTA Series Torque Reaction Arms

QTA tool holders

Ingerson Rand offers a variety of customized tool holders to accompany Right Ingerson Rand
our bench and floor-mounted torque reaction arms. Whether you're angle angle or inline
using one of our assembly tools or a competitive model, our tool holders
ensure that the tool is secured correctly and safely for both the tool Pistol Ingerson Ra nd
and the operator. push to start

Torque Arm Tool Holders

Generic damp-on, inline tool holders are provided with the QTAOlO,
QTA020, QTA040, and QTAlOO Torque Arms. Additional damp-on style
tool holder options are available for right angle and pistol tools; a 1/4"
NPT threaded tool holder is available for low-torque inline air tools.

Ingerson Rand tool holders are available for all torque arm models,
and are recommended when using any Ingerson Rand QE or QA tool.
For proper tool holder selection, refer to specific part numbers provided
in tables below.

Generic Clamp Style Tool Holders

TORQUE ARMS Generic Too! holders are not available
for arms 150 Nm and above
TOOL HOLDER QTAOlO QTA020 QTA040 QTAlOO
lnline (included with arm) ITC010- 1C ITClOO - lC Flange mounting is recommended for inline
RightAngle ATCOlO - lC ITC040 - 1C ITC040 - 1C ATClOO- lC tools with torque capacity above 40 Nm
Pistol PTCOlO - lC
Rotating RTCOlO- lC ATC040 - 1C ATC040 - 1C N/ A Please note the too! diameter range
1/4" NPT NTCOlO - lT N/ A for generic holders:
PTC040 - 1C PTC040 - 1C N/ A
QTAOlO: 25 - 40 mm (l""- 1.57"")
RTC040 - 1C RTC040 - 1C
QTA020 l QTA040 l QTA100:
N/A N/A
28 - 52 mm (1.1""- 2'')

Ingerson Rand QA Series and QE Series Tool Holders

TORQUE ARMS

TOOLS QTAOlO QTA020 QTA040 QTAlOO QTAlSO QTA270 QTA475
N/ A
QE4 (non-push to st art) N/A CTC040-KlB CTC040-KlB N/ A N/ A N/A N/ A
N/ A
QE4 (push to start) CTC040-KlP CTC040-KlP CTC040-KlP N/ A N/ A N/A N/ A
N/ A
QE6 N/A CTC040-K2B CTC040-K2B CTC100-K2B N/ A N/A N/ A

QE8 (using bolt-on flange GEM120-K48) N/A N/ A N/ A CTC100-K2B CTC150-K2B N/A CTC475 - K5B
N/ A
QE8 (using integrated flanged gearcase) N/A N/ A N/ A CTC100-K3B CTC150-K3B CTC270-K3B N/ A
N/ A
QE8 (230 Nm inline) N/A N/ A N/ A N/ A N/ A CTC270-K4B N/ A
N/ A
QE8 (400 Nm angle) N/A N/ A N/ A N/ A N/ A N/A

QA4 (angle) N/A CTC040-K6B CTC040-K6B CTC100-K6B N/ A N/A

QA4 (27 Nm max inline) & QA6 N/A CTC040-KlB CTC040-KlB CTClOO-KlB N/ A N/A

QA4 (46 Nm inline) N/A N/ A N/ A CTC100 - K2B N/ A N/A

QA8 (150 Nm max angle, 55 Nm max inline) N/A N/ A CTC040-KlB CTClOO-KlB CTC150-K2B N/A

QA8 (above 150 Nm angle, above 55 Nm inline) N/A N/ A N/ A CTC100-K2B CTC150-K3B CTC270-K3B

Note: Every Ingerson Rand QE- or QA-specific too! holder Iisted in the table above accepts both angle and inline tools but requires an integrated flanged gear
case or bolt-on mounting flange to attach the too! holder to the too!. If your too! came with mounting style "P," "R," or 'J," order Part No . 15E4-K48 for any
Ingerson Rand-specific too! holderthat ends with "l B." Order Part No. GEM120-K48 for any Ingerson Rand-spedfic too! holderthat ends with "2B."
Order Part No. QA4-K48 for any Ingerson Rand-specific too! holderthat ends with "6B."
