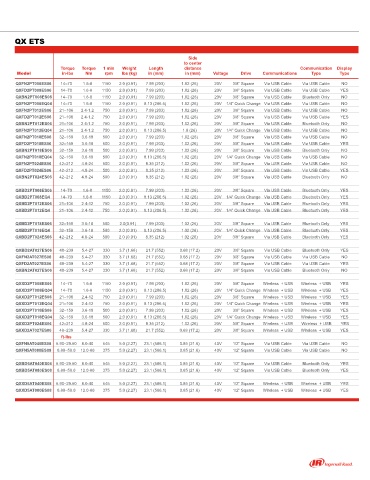

QX CONNECT SERIES ™

QXXD QX ETS

Side Side
to center to center
Torque Torque 1 min Weight Length distance Communication Display Torque Torque 1 min Weight Length distance Communication Display
Model in-lbs Nm rpm lbs (kg) in (mm) in (mm) Voltage Drive Communications Type Type Model in-lbs Nm rpm lbs (kg) in (mm) in (mm) Voltage Drive Communications Type Type
QXXD2PT004PQ04 7–35 0.8–4 1,500 2.0 (0.91) 8.48 (215.4) 0.8–1.0 (20.3–26.0) 20V 1/4” Quick Change Wireless + USB Wireless YES QXFN2PT008ES06 14–70 1.6-8 1150 2.0 (0.91) 7.99 (203) 1.02 (26) 20V 3/8” Square Via USB Cable Via USB Cable NO
QXXD2PT004PS04 7–35 0.8–4 1,500 2.0 (0.91) 8.2 (208.3) 0.8–1.0 (20.3–26.0) 20V 1/4” Square Wireless + USB Wireless YES QXFD2PT008ES06 14–70 1.6-8 1150 2.0 (0.91) 7.99 (203) 1.02 (26) 20V 3/8” Square Via USB Cable Via USB Cable YES
QXXD2PT004PS06 7–35 0.8–4 1,500 2.0 (0.91) 8.35 (212) 0.8–1.0 (20.3–26.0) 20V 3/8” Square Wireless + USB Wireless YES QXBN2PT008ES06 14–70 1.6-8 1150 2.0 (0.91) 7.99 (203) 1.02 (26) 20V 3/8” Square Via USB Cable Bluetooth Only NO
QXXD2PT008PQ04 14–70 1.6–8 1,150 2.0 (0.91) 8.48 (215.4 0.8–1.0 (20.3–26.0) 20V 1/4” Quick Change Wireless + USB Wireless YES QXFN2PT008EQ04 14–70 1.6-8 1150 2.0 (0.91) 8.13 (206.5) 1.02 (26) 20V 1/4” Quick Change Via USB Cable Via USB Cable NO
QXXD2PT008PS04 14–70 1.6–8 1,150 2.0 (0.91) 8.2 (208.3) 0.8–1.0 (20.3–26.0) 20V 1/4” Square Wireless + USB Wireless YES QXFN2PT012ES06 21–106 2.4-1.2 750 2.0 (0.91) 7.99 (203) 1.02 (26) 20V 3/8” Square Via USB Cable Via USB Cable NO
QXXD2PT008PS06 14–70 1.6–8 1,150 2.0 (0.91) 8.35 (212) 0.8–1.0 (20.3–26.0) 20V 3/8” Square Wireless + USB Wireless YES QXFD2PT012ES06 21–106 2.4-1.2 750 2.0 (0.91) 7.99 (203) 1.02 (26) 20V 3/8” Square Via USB Cable Via USB Cable YES
QXXD2PT012PQ04 21–106 2.4–12 750 2.0 (0.91) 8.48 (215.4) 0.8–1.0 (20.3–26.0) 20V 1/4” Quick Change Wireless + USB Wireless YES QXBN2PT012ES06 21–106 2.4-1.2 750 2.0 (0.91) 7.99 (203) 1.02 (26) 20V 3/8” Square Via USB Cable Bluetooth Only NO
QXXD2PT012PS04 21–106 2.4–12 750 2.0 (0.91) 8.2 (208.3) 0.8–1.0 (20.3–26.0) 20V 1/4” Square Wireless + USB Wireless YES QXFN2PT012EQ04 21–106 2.4-1.2 750 2.0 (0.91) 8.13 (206.5) 1.0 (26) 20V 1/4” Quick Change Via USB Cable Via USB Cable NO
QXXD2PT012PS06 21–106 2.4–12 750 2.0 (0.91) 8.35 (212) 0.8–1.0 (20.3–26.0) 20V 3/8” Square Wireless + USB Wireless YES QXFN2PT018ES06 32–159 3.6-18 500 2.0 (0.91) 7.99 (203) 1.02 (26) 20V 3/8” Square Via USB Cable Via USB Cable NO
QXXD2PT018PQ04 32–159 3.6–18 500 2.0 (0.91) 8.48 (215.4) 0.8–1.0 (20.3–26.0) 20V 1/4” Quick Change Wireless + USB Wireless YES QXFD2PT018ES06 32–159 3.6-18 500 2.0 (0.91) 7.99 (203) 1.02 (26) 20V 3/8” Square Via USB Cable Via USB Cable YES
QXXD2PT018PS06 32–159 3.6–18 500 2.0 (0.91) 8.35 (212) 0.8–1.0 (20.3–26.0) 20V 3/8” Square Wireless + USB Wireless YES QXBN2PT018ES06 32–159 3.6-18 500 2.0 (0.91) 7.99 (203) 1.02 (26) 20V 3/8” Square Via USB Cable Bluetooth Only NO
QXFN2PT018EQ04 32–159 3.6-18 500 2.0 (0.91) 8.13 (206.5) 1.02 (26) 20V 1/4” Quick Change Via USB Cable Via USB Cable NO
QXXD2AT005PQ04 9–44 1.0–5 1213 2.5 (1.14) 21.73 (552) 0.36 (9.2) 20V 1/4” Quick Change Wireless + USB Wireless YES QXFN2PT024ES06 42–212 4.8-24 500 2.0 (0.91) 8.35 (212) 1.02 (26) 20V 3/8” Square Via USB Cable Via USB Cable NO
QXXD2AT010PS06 18–89 2.0–10 936 2.6 (1.18) 20.67 (525) 0.49 (12.5) 20V 3/8” Square Wireless + USB Wireless YES QXFD2PT024ES06 42–212 4.8-24 500 2.0 (0.91) 8.35 (212) 1.02 (26) 20V 3/8” Square Via USB Cable Via USB Cable YES
QXXD2AT015PS06 27–133 3.0–15 600 2.6 (1.18) 20.67 (525) 0.49 (12.5) 20V 3/8” Square Wireless + USB Wireless YES QXBN2PT024ES06 42–212 4.8-24 500 2.0 (0.91) 8.35 (212) 1.02 (26) 20V 3/8” Square Via USB Cable Bluetooth Only NO
QXXD2AT018PQ04 32–159 3.6–18 500 2.8 (1.27) 24.34 (542) 0.51 (13) 20V 1/4” Quick Change Wireless + USB Wireless YES
QXXD2AT018PS06 32–159 3.6–18 500 2.8 (1.27) 24.34 (542) 0.51 (13) 20V 3/8” Square Wireless + USB Wireless YES QXBD2PT008ES06 14–70 1.6-8 1150 2.0 (0.91) 7.99 (203) 1.02 (26) 20V 3/8” Square Via USB Cable Bluetooth Only YES
QXXD2AT027PS06 48–239 5.4–27 330 3.7 (1.68) 21.73 (552) 0.67 (17) 20V 3/8” Square Wireless + USB Wireless YES QXBD2PT008EQ4 14–70 1.6-8 1150 2.0 (0.91) 8.13 (206.5) 1.02 (26) 20V 1/4” Quick Change Via USB Cable Bluetooth Only YES
ft-lbs QXBD2PT012ES06 21–106 2.4-12 750 2.0 (0.91) 7.99 (203) 1.02 (26) 20V 3/8” Square Via USB Cable Bluetooth Only YES
QXXD5AT020PS06 2.95–14.75 4.0–20 1045 4.5 (2.04) 22.74 (577.7) 0.52 (13.1) 40V 3/8” Square Wireless + USB Wireless YES QXBD2PT012EQ4 21–106 2.4-12 750 2.0 (0.91) 8.13 (206.5) 1.02 (26) 20V 1/4” Quick Change Via USB Cable Bluetooth Only YES
QXXD5AT030PS06 4.40–22.10 6.0–30 775 4.8 (2.18) 22.91 (581.8) 0.68 (17.2) 40V 3/8” Square Wireless + USB Wireless YES
QXXD5AT030PS08 4.40–22.10 6.0–30 775 4.8 (2.18) 22.91 (581.8) 0.68 (17.2) 40V 1/2” Square Wireless + USB Wireless YES QXBD2PT018ES06 32–159 3.6-18 500 2.0(0.91) 7.99 (203) 1.02 (26) 20V 3/8” Square Via USB Cable Bluetooth Only YES
QXXD5AT035PS06 5.20–25.80 7.0–35 640 4.8 (2.18) 22.91 (581.8) 0.68 (17.2) 40V 3/8” Square Wireless + USB Wireless YES QXBD2PT018EQ4 32–159 3.6-18 500 2.0 (0.91) 8.13 (206.5) 1.02 (26) 20V 1/4” Quick Change Via USB Cable Bluetooth Only YES
QXXD5AT035PS08 5.20–25.80 7.0–35 640 4.8 (2.18) 22.91 (581.8) 0.68 (17.2) 40V 1/2” Square Wireless + USB Wireless YES QXBD2PT024ES06 42–212 4.8-24 500 2.0 (0.91) 8.35 (212) 1.02 (26) 20V 3/8” Square Via USB Cable Bluetooth Only YES
QXXD5AT040PS08 5.90–29.50 8.0–40 545 5 (2.27) 23.07 (586.1) 0.85 (21.6) 40V 1/2” Square Wireless + USB Wireless YES
QXXD5AT080PS08 8.80–59.0 12.0–80 375 5 (2.27) 23.07 (586.1) 0.85 (21.6) 40V 1/2” Square Wireless + USB Wireless YES QXBD2AT027ES06 48–239 5.4-27 330 3.7 (1.68) 21.7 (552) 0.68 (17.2) 20V 3/8” Square Via USB Cable Bluetooth Only YES
QXFN2AT027ES06 48–239 5.4-27 330 3.7 (1.68) 21.7 (552) 0.68 (17.2) 20V 3/8” Square Via USB Cable Via USB Cable NO
QXFD2AT027ES06 48–239 5.4-27 330 3.7 (1.68) 21.7 (552) 0.68 (17.2) 20V 3/8” Square Via USB Cable Via USB Cable YES
QXBN2AT027ES06 48–239 5.4-27 330 3.7 (1.68) 21.7 (552) 0.68 (17.2) 20V 3/8” Square Via USB Cable Bluetooth Only NO

QXXD2PT008ES06 14–70 1.6-8 1150 2.0 (0.91) 7.99 (203) 1.02 (26) 20V 3/8” Square Wireless + USB Wireless + USB YES
QXXD2PT008EQ04 14–70 1.6-8 1150 2.0 (0.91) 8.13 (206.5) 1.02 (26) 20V 1/4” Quick Change Wireless + USB Wireless + USB YES
QXXD2PT012ES06 21–106 2.4-12 750 2.0 (0.91) 7.99 (203) 1.02 (26) 20V 3/8” Square Wireless + USB Wireless + USB YES
QXXD2PT012EQ04 21–106 2.4-12 750 2.0 (0.91) 8.13 (206.5) 1.02 (26) 20V 1/4” Quick Change Wireless + USB Wireless + USB YES
QXXD2PT018ES06 32–159 3.6-18 500 2.0 (0.91) 7.99 (203) 1.02 (26) 20V 3/8” Square Wireless + USB Wireless + USB YES
QXXD2PT018EQ04 32–159 3.6-18 500 2.0 (0.91) 8.13 (206.5) 1.02 (26) 20V 1/4” Quick Change Wireless + USB Wireless + USB YES
QXXD2PT024ES06 42–212 4.8-24 500 2.0 (0.91) 8.35 (212) 1.02 (26) 20V 3/8” Square Wireless + USB Wireless + USB YES
QXXD2AT027ES06 48–239 5.4-27 330 3.7 (1.68) 21.7 (552) 0.68 (17.2) 20V 3/8” Square Wireless + USB Wireless + USB YES
ft-lbs
QXFN5AT040ES08 5.90–29.50 8.0-40 545 5.0 (2.27) 23.1 (586.1) 0.85 (21.6) 40V 1/2” Square Via USB Cable Via USB Cable NO
QXFN5AT080ES08 8.80–59.0 12.0-80 375 5.0 (2.27) 23.1 (586.1) 0.85 (21.6) 40V 1/2” Square Via USB Cable Via USB Cable NO
QXBD5AT040ES08 5.90–29.50 8.0-40 545 5.0 (2.27) 23.1 (586.1) 0.85 (21.6) 40V 1/2” Square Via USB Cable Bluetooth Only YES
QXBD5AT080ES08 8.80–59.0 12.0-80 375 5.0 (2.27) 23.1 (586.1) 0.85 (21.6) 40V 1/2” Square Via USB Cable Bluetooth Only YES
QXXD5AT040ES08 5.90–29.50 8.0-40 545 5.0 (2.27) 23.1 (586.1) 0.85 (21.6) 40V 1/2” Square Wireless + USB Wireless + USB YES
QXXD5AT080ES08 8.80–59.0 12.0-80 375 5.0 (2.27) 23.1 (586.1) 0.85 (21.6) 40V 1/2” Square Wireless + USB Wireless + USB YES
