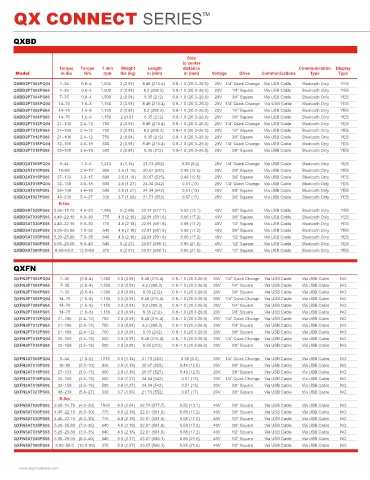

P. 16

QX CONNECT SERIES ™

QXBD QXBN/QXFD

Side Side
to center to center
Torque Torque 1 min Weight Length distance Communication Display Torque Torque 1 min Weight Length distance Communication Display
Model in-lbs Nm rpm lbs (kg) in (mm) in (mm) Voltage Drive Communications Type Type Model in-lbs Nm rpm lbs (kg) in (mm) in (mm) Voltage Drive Communications Type Type
QXBD2PT004PQ04 7–35 0.8–4 1,500 2 (0.91) 8.48 (215.4) 0.8–1.0 (20.3–26.0) 20V 1/4” Quick Change Via USB Cable Bluetooth Only YES QXBN2PT004PQ04 7–35 (0.8–4) 1,500 2.0 (0.91) 8.48 (215.4) 0.8–1.0 (20.3-26.0) 20V 1/4” Quick Change Via USB Cable Bluetooth Only NO
QXBD2PT004PS04 7–35 0.8–4 1,500 2 (0.91) 8.2 (208.3) 0.8–1.0 (20.3–26.0) 20V 1/4” Square Via USB Cable Bluetooth Only YES QXBN2PT004PS04 7–35 (0.8–4) 1,500 2.0 (0.91) 8.2 (208.3) 0.8–1.0 (20.3-26.0) 20V 1/4” Square Via USB Cable Bluetooth Only NO
QXBD2PT004PS06 7–35 0.8–4 1,500 2 (0.91) 8.35 (212) 0.8–1.0 (20.3–26.0) 20V 3/8” Square Via USB Cable Bluetooth Only YES QXBN2PT004PS06 7–35 (0.8–4) 1,500 2.0 (0.91) 8.35 (212) 0.8–1.0 (20.3-26.0) 20V 3/8” Square Via USB Cable Bluetooth Only NO
QXBD2PT008PQ04 14–70 1.6–8 1,150 2 (0.91) 8.48 (215.4) 0.8–1.0 (20.3–26.0) 20V 1/4” Quick Change Via USB Cable Bluetooth Only YES QXBN2PT008PQ04 14–70 (1.6–8) 1,150 2.0 (0.91) 8.48 (215.4) 0.8–1.0 (20.3-26.0) 20V 1/4” Quick Change Via USB Cable Bluetooth Only NO
QXBD2PT008PS04 14–70 1.6–8 1,150 2 (0.91) 8.2 (208.3) 0.8–1.0 (20.3–26.0) 20V 1/4” Square Via USB Cable Bluetooth Only YES QXBN2PT008PS04 14–70 (1.6–8) 1,150 2.0 (0.91) 8.2 (208.3) 0.8–1.0 (20.3-26.0) 20V 1/4” Square Via USB Cable Bluetooth Only NO
QXBD2PT008PS06 14–70 1.6–8 1,150 2 (0.91 8.35 (212) 0.8–1.0 (20.3–26.0) 20V 3/8” Square Via USB Cable Bluetooth Only YES QXBN2PT008PS06 14–70 (1.6–8) 1,150 2.0 (0.91) 8.35 (212) 0.8–1.0 (20.3-26.0) 20V 3/8” Square Via USB Cable Bluetooth Only NO
QXBD2PT012PQ04 21–106 2.4–12 750 2 (0.91) 8.48 (215.4) 0.8–1.0 (20.3–26.0) 20V 1/4” Quick Change Via USB Cable Bluetooth Only YES QXBN2PT012PQ04 21–106 (2.4–12) 750 2.0 (0.91) 8.48 (215.4) 0.8–1.0 (20.3-26.0) 20V 1/4” Quick Change Via USB Cable Bluetooth Only NO
QXBD2PT012PS04 21–106 2.4–12 750 2 (0.91) 8.2 (208.3) 0.8–1.0 (20.3–26.0) 20V 1/4” Square Via USB Cable Bluetooth Only YES QXBN2PT012PS04 21–106 (2.4–12) 750 2.0 (0.91) 8.2 (208.3) 0.8–1.0 (20.3-26.0) 20V 1/4” Square Via USB Cable Bluetooth Only NO
QXBD2PT012PS06 21–106 2.4–12 750 2 (0.91) 8.35 (212) 0.8–1.0 (20.3–26.0) 20V 3/8” Square Via USB Cable Bluetooth Only YES QXBN2PT012PS06 21–106 (2.4–12) 750 2.0 (0.91) 8.35 (212) 0.8–1.0 (20.3-26.0) 20V 3/8” Square Via USB Cable Bluetooth Only NO
QXBD2PT018PQ04 32–159 3.6–18 500 2 (0.91) 8.48 (215.4) 0.8–1.0 (20.3–26.0) 20V 1/4” Quick Change Via USB Cable Bluetooth Only YES QXBN2PT018PQ04 32–159 (3.6–18) 500 2.0 (0.91) 8.48 (215.4) 0.8–1.0 (20.3-26.0) 20V 1/4” Quick Change Via USB Cable Bluetooth Only NO
QXBD2PT018PS06 32–159 3.6–18 500 2 (0.91) 8.35 (212) 0.8–1.0 (20.3–26.0) 20V 3/8” Square Via USB Cable Bluetooth Only YES QXBN2PT018PS06 32–159 (3.6–18) 500 2.0 (0.91) 8.35 (212) 0.8–1.0 (20.3-26.0) 20V 3/8” Square Via USB Cable Bluetooth Only NO

QXBD2AT005PQ04 9–44 1.0–5 1,213 3 (1.14) 21.73 (552) 0.36 (9.2) 20V 1/4” Quick Change Via USB Cable Bluetooth Only YES QXBN2AT005PQ04 9–44 (1.0–5) 1213 2.5 (1.14) 21.73 (552) 0.36 (9.2) 20V 1/4” Quick Change Via USB Cable Bluetooth Only NO
QXBD2AT010PS06 18–89 2.0–10 936 2.6 (1.18) 20.67 (525) 0.49 (12.5) 20V 3/8” Square Via USB Cable Bluetooth Only YES QXBN2AT010PS06 18–89 (2.0–10) 936 2.6 (1.18) 20.67 (525) 0.49 (12.5) 20V 3/8” Square Via USB Cable Bluetooth Only NO
QXBD2AT015PS06 27–133 3.0–15 600 2.6 (1.18) 20.67 (525) 0.49 (12.5) 20V 3/8” Square Via USB Cable Bluetooth Only YES QXBN2AT015PS06 27–133 (3.0–15) 600 2.6 (1.18) 20.67 (525) 0.49 (12.5) 20V 3/8” Square Via USB Cable Bluetooth Only NO
QXBD2AT018PQ04 32–159 3.6–18 500 2.8 (1.27) 24.34 (542) 0.51 (13) 20V 1/4” Quick Change Via USB Cable Bluetooth Only YES QXBN2AT018PQ04 32–159 (3.6–18) 500 2.8 (1.27) 24.34 (542) 0.51 (13) 20V 1/4” Quick Change Via USB Cable Bluetooth Only NO
QXBD2AT018PS06 32–159 3.6–18 500 2.8 (1.27) 24.34 (542) 0.51 (13) 20V 3/8” Square Via USB Cable Bluetooth Only YES QXBN2AT018PS06 32–159 (3.6–18) 500 2.8 (1.27) 24.34 (542) 0.51 (13) 20V 3/8” Square Via USB Cable Bluetooth Only NO
QXBD2AT027PS06 48–239 5.4–27 330 3.7 (1.68) 21.73 (552) 0.67 (17) 20V 3/8” Square Via USB Cable Bluetooth Only YES QXBN2AT027PS06 48–239 (5.4–27) 330 3.7 (1.68) 21.73 (552) 0.67 (17) 20V 3/8” Square Via USB Cable Bluetooth Only NO
ft-lbs ft-lbs
QXBD5AT020PS06 2.95–14.75 4.0–20 1,045 5 (2.04) 22.74 (577.7) 0.52 (13.1) 40V 3/8” Square Via USB Cable Bluetooth Only YES QXBN5AT020PS06 2.95–14.75 (4.0–20) 1045 4.5 (2.04) 22.74 (577.7) 0.52 (13.1) 40V 3/8” Square Via USB Cable Bluetooth Only NO
QXBD5AT030PS06 4.40–22.10 6.0–30 775 4.8 (2.18) 22.91 (581.8) 0.68 (17.2) 40V 3/8” Square Via USB Cable Bluetooth Only YES QXBN5AT030PS06 4.40–22.10 (6.0–30) 775 4.8 (2.18) 22.91 (581.8) 0.68 (17.2) 40V 3/8” Square Via USB Cable Bluetooth Only NO
QXBD5AT030PS08 4.40–22.10 6.0–30 775 4.8 (2.18) 22.91 (581.8) 0.68 (17.2) 40V 1/2” Square Via USB Cable Bluetooth Only YES QXBN5AT030PS08 4.40–22.10 (6.0–30) 775 4.8 (2.18) 22.91 (581.8) 0.68 (17.2) 40V 1/2” Square Via USB Cable Bluetooth Only NO
QXBD5AT035PS06 5.20–25.80 7.0–35 640 4.8 (2.18) 22.91 (581.8) 0.68 (17.2) 40V 3/8” Square Via USB Cable Bluetooth Only YES QXBN5AT035PS06 5.20–25.80 (7.0–35) 640 4.8 (2.18) 22.91 (581.8) 0.68 (17.2) 40V 3/8” Square Via USB Cable Bluetooth Only NO
QXBD5AT035PS08 5.20–25.80 7.0–35 640 4.8 (2.18) 22.91 (581.8) 0.68 (17.2) 40V 1/2” Square Via USB Cable Bluetooth Only YES QXBN5AT035PS08 5.20–25.80 (7.0–35) 640 4.8 (2.18) 22.91 (581.8) 0.68 (17.2) 40V 1/2” Square Via USB Cable Bluetooth Only NO
QXBD5AT040PS08 5.90–29.50 8.0–40 545 5 (2.27) 23.07 (586.1) 0.85 (21.6) 40V 1/2” Square Via USB Cable Bluetooth Only YES QXBN5AT040PS08 5.90–29.50 (8.0–40) 545 5.0 (2.27) 23.07 (586.1) 0.85 (21.6) 40V 1/2” Square Via USB Cable Bluetooth Only NO
QXBD5AT080PS08 8.80–59.0 12.0–80 375 5 (2.27) 23.07 (586.1) 0.85 (21.6) 40V 1/2” Square Via USB Cable Bluetooth Only YES QXBN5AT080PS08 8.80–59.0 (12.0–80) 375 5.0 (2.27) 23.07 (586.1) 0.85 (21.6) 40V 1/2” Square Via USB Cable Bluetooth Only NO
QXFD
QXFD2PT004PQ04 7–35 (0.8–4) 1,500 2.0 (0.91) 8.48 (215.4) 0.8–1.0 (20.3-26.0) 20V 1/4” Quick Change Via USB Cable Via USB Cable YES
QXFN QXFD2PT004PS04 7–35 (0.8–4) 1,500 2.0 (0.91) 8.2 (208.3) 0.8–1.0 (20.3-26.0) 20V 1/4” Square Via USB Cable Via USB Cable YES
QXFD2PT004PS06 7–35 (0.8–4) 1,500 2.0 (0.91) 8.35 (212) 0.8–1.0 (20.3-26.0) 20V 3/8” Square Via USB Cable Via USB Cable YES
QXFN2PT004PQ04 7–35 (0.8–4) 1,500 2.0 (0.91) 8.48 (215.4) 0.8–1.0 (20.3-26.0) 20V 1/4” Quick Change Via USB Cable Via USB Cable NO
QXFN2PT004PS04 7–35 (0.8–4) 1,500 2.0 (0.91) 8.2 (208.3) 0.8–1.0 (20.3-26.0) 20V 1/4” Square Via USB Cable Via USB Cable NO QXFD2PT008PQ04 14–70 (1.6–8) 1,150 2.0 (0.91) 8.48 (215.4) 0.8–1.0 (20.3-26.0) 20V 1/4” Quick Change Via USB Cable Via USB Cable YES
QXFN2PT004PS06 7–35 (0.8–4) 1,500 2.0 (0.91) 8.35 (212) 0.8–1.0 (20.3-26.0) 20V 3/8” Square Via USB Cable Via USB Cable NO QXFD2PT008PS04 14–70 (1.6–8) 1,150 2.0 (0.91) 8.2 (208.3) 0.8–1.0 (20.3-26.0) 20V 1/4” Square Via USB Cable Via USB Cable YES
QXFN2PT008PQ04 14–70 (1.6–8) 1,150 2.0 (0.91) 8.48 (215.4) 0.8–1.0 (20.3-26.0) 20V 1/4” Quick Change Via USB Cable Via USB Cable NO QXFD2PT008PS06 14–70 (1.6–8) 1,150 2.0 (0.91) 8.35 (212) 0.8–1.0 (20.3-26.0) 20V 3/8” Square Via USB Cable Via USB Cable YES
QXFN2PT008PS04 14–70 (1.6–8) 1,150 2.0 (0.91) 8.2 (208.3) 0.8–1.0 (20.3-26.0) 20V 1/4” Square Via USB Cable Via USB Cable NO QXFD2PT012PQ04 21–106 (2.4–12) 750 2.0 (0.91) 8.48 (215.4) 0.8–1.0 (20.3-26.0) 20V 1/4” Quick Change Via USB Cable Via USB Cable YES
QXFN2PT008PS06 14–70 (1.6–8) 1,150 2.0 (0.91) 8.35 (212) 0.8–1.0 (20.3-26.0) 20V 3/8” Square Via USB Cable Via USB Cable NO QXFD2PT012PS04 21–106 (2.4–12) 750 2.0 (0.91) 8.2 (208.3) 0.8–1.0 (20.3-26.0) 20V 1/4” Square Via USB Cable Via USB Cable YES
QXFN2PT012PQ04 21–106 (2.4–12) 750 2.0 (0.91) 8.48 (215.4) 0.8–1.0 (20.3-26.0) 20V 1/4” Quick Change Via USB Cable Via USB Cable NO QXFD2PT012PS06 21–106 (2.4–12) 750 2.0 (0.91) 8.35 (212) 0.8–1.0 (20.3-26.0) 20V 3/8” Square Via USB Cable Via USB Cable YES
QXFN2PT012PS04 21–106 (2.4–12) 750 2.0 (0.91) 8.2 (208.3) 0.8–1.0 (20.3-26.0) 20V 1/4” Square Via USB Cable Via USB Cable NO QXFD2PT018PQ04 32–159 (3.6–18) 500 2.0 (0.91) 8.48 (215.4) 0.8–1.0 (20.3-26.0) 20V 1/4” Quick Change Via USB Cable Via USB Cable YES
QXFN2PT012PS06 21–106 (2.4–12) 750 2.0 (0.91) 8.35 (212) 0.8–1.0 (20.3-26.0) 20V 3/8” Square Via USB Cable Via USB Cable NO QXFD2PT018PS06 32–159 (3.6–18) 500 2.0 (0.91) 8.35 (212) 0.8–1.0 (20.3-26.0) 20V 3/8” Square Via USB Cable Via USB Cable YES
QXFN2PT018PQ04 32–159 (3.6–18) 500 2.0 (0.91) 8.48 (215.4) 0.8–1.0 (20.3-26.0) 20V 1/4” Quick Change Via USB Cable Via USB Cable NO
QXFN2PT018PS06 32–159 (3.6–18) 500 2.0 (0.91) 8.35 (212) 0.8–1.0 (20.3-26.0) 20V 3/8” Square Via USB Cable Via USB Cable NO QXFD2AT005PQ04 9–44 (1.0–5) 1213 2.5 (1.14) 21.73 (552) 0.36 (9.2) 20V 1/4” Quick Change Via USB Cable Via USB Cable YES
QXFD2AT010PS06 18–89 (2.0–10) 936 2.6 (1.18) 20.67 (525) 0.49 (12.5) 20V 3/8” Square Via USB Cable Via USB Cable YES
QXFD2AT015PS06 27–133 (3.0–15) 600 2.6 (1.18) 20.67 (525) 0.49 (12.5) 20V 3/8” Square Via USB Cable Via USB Cable YES
QXFN2AT005PQ04 9–44 (1.0–5) 1213 2.5 (1.14) 21.73 (552) 0.36 (9.2) 20V 1/4” Quick Change Via USB Cable Via USB Cable NO
QXFN2AT010PS06 18–89 (2.0–10) 936 2.6 (1.18) 20.67 (525) 0.49 (12.5) 20V 3/8” Square Via USB Cable Via USB Cable NO QXFD2AT018PQ04 32–159 (3.6–18) 500 2.8 (1.27) 24.34 (542) 0.51 (13) 20V 1/4” Quick Change Via USB Cable Via USB Cable YES
QXFN2AT015PS06 27–133 (3.0–15) 600 2.6 (1.18) 20.67 (525) 0.49 (12.5) 20V 3/8” Square Via USB Cable Via USB Cable NO QXFD2AT018PS06 32–159 (3.6–18) 500 2.8 (1.27) 24.34 (542) 0.51 (13) 20V 3/8” Square Via USB Cable Via USB Cable YES
QXFN2AT018PQ04 32–159 (3.6–18) 500 2.8 (1.27) 24.34 (542) 0.51 (13) 20V 1/4” Quick Change Via USB Cable Via USB Cable NO QXFD2AT027PS06 48–239 (5.4–27) 330 3.7 (1.68) 21.73 (552) 0.67 (17) 20V 3/8” Square Via USB Cable Via USB Cable YES
QXFN2AT018PS06 32–159 (3.6–18) 500 2.8 (1.27) 24.34 (542) 0.51 (13) 20V 3/8” Square Via USB Cable Via USB Cable NO ft-lbs
QXFN2AT027PS06 48–239 (5.4–27) 330 3.7 (1.68) 21.73 (552) 0.67 (17) 20V 3/8” Square Via USB Cable Via USB Cable NO QXFD5AT020PS06 2.95–14.75 (4.0–20) 1045 4.5 (2.04) 22.74 (577.7) 0.52 (13.1) 40V 3/8” Square Via USB Cable Via USB Cable YES
ft-lbs QXFD5AT030PS06 4.40–22.10 (6.0–30) 775 4.8 (2.18) 22.91 (581.8) 0.68 (17.2) 40V 3/8” Square Via USB Cable Via USB Cable YES
QXFN5AT020PS06 2.95–14.75 (4.0–20) 1045 4.5 (2.04) 22.74 (577.7) 0.52 (13.1) 40V 3/8” Square Via USB Cable Via USB Cable NO QXFD5AT030PS08 4.40–22.10 (6.0–30) 775 4.8 (2.18) 22.91 (581.8) 0.68 (17.2) 40V 1/2” Square Via USB Cable Via USB Cable YES
QXFN5AT030PS06 4.40–22.10 (6.0–30) 775 4.8 (2.18) 22.91 (581.8) 0.68 (17.2) 40V 3/8” Square Via USB Cable Via USB Cable NO QXFD5AT035PS06 5.20–25.80 (7.0–35) 640 4.8 (2.18) 22.91 (581.8) 0.68 (17.2) 40V 3/8” Square Via USB Cable Via USB Cable YES
QXFN5AT030PS08 4.40–22.10 (6.0–30) 775 4.8 (2.18) 22.91 (581.8) 0.68 (17.2) 40V 1/2” Square Via USB Cable Via USB Cable NO QXFD5AT035PS08 5.20–25.80 (7.0–35) 640 4.8 (2.18) 22.91 (581.8) 0.68 (17.2) 40V 1/2” Square Via USB Cable Via USB Cable YES
QXFN5AT035PS06 5.20–25.80 (7.0–35) 640 4.8 (2.18) 22.91 (581.8) 0.68 (17.2) 40V 3/8” Square Via USB Cable Via USB Cable NO QXFD5AT040PS08 5.90–29.50 (8.0–40) 545 5.0 (2.27) 23.07 (586.1) 0.85 (21.6) 40V 1/2” Square Via USB Cable Via USB Cable YES
QXFN5AT035PS08 5.20–25.80 (7.0–35) 640 4.8 (2.18) 22.91 (581.8) 0.68 (17.2) 40V 1/2” Square Via USB Cable Via USB Cable NO QXFD5AT080PS08 8.80–59.0 (12.0–80) 375 5.0 (2.27) 23.07 (586.1) 0.85 (21.6) 40V 1/2” Square Via USB Cable Via USB Cable YES
QXFN5AT040PS08 5.90–29.50 (8.0–40) 545 5.0 (2.27) 23.07 (586.1) 0.85 (21.6) 40V 1/2” Square Via USB Cable Via USB Cable NO
QXFN5AT080PS08 8.80–59.0 (12.0–80) 375 5.0 (2.27) 23.07 (586.1) 0.85 (21.6) 40V 1/2” Square Via USB Cable Via USB Cable NO

www.ingersollrand.com
