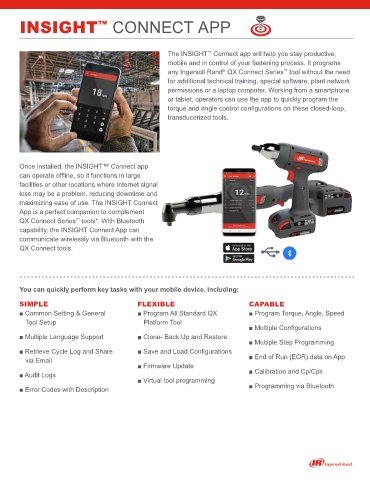

QXM CORDLESS TORQUE MULTIPLIER INSIGHT CONNECT APP
™

The innovative QX Series™ Cordless Torque Multiplier will reduce your fastening time and cost, while ensuring The INSIGHT Connect app will help you stay productive,
™
repeatable accuracy for all torque-critical joints. Designed with a premium gearbox and an efficient, time-tested mobile and in control of your fastening process. It programs
closed-loop transducer, the Torque Multiplier is world-class in quality, control and programmable configurations to any Ingersoll Rand QX Connect Series tool without the need
™
®
maximize your productivity. for additional technical training, special software, plant network
permissions or a laptop computer. Working from a smartphone
or tablet, operators can use the app to quickly program the
torque and angle control configurations on these closed-loop,
transducerized tools.

Once installed, the INSIGHT™ Connect app
can operate offline, so it functions in large
facilities or other locations where Internet signal
loss may be a problem, reducing downtime and
maximizing ease of use. The INSIGHT Connect
App is a perfect companion to complement
QX Connect Series tools*. With Bluetooth
™
FEATURES capability, the INSIGHT Connect App can
n A multi-function display module allowing for quick setup and communicate wirelessly via Bluetooth with the
feedback on every QX Series™ tool QX Connect tools.

n User-programmable parameters such as torque, angle and
batch count reduce the number of tools needed when multiple
applications are required

n Maintenance indicator for troubleshooting and diagnostics You can quickly perform key tasks with your mobile device, including:

n Simple programming methods make the tool easily adaptable SIMPLE FLEXIBLE CAPABLE
for various applications ■ Common Setting & General ■ Program All Standard QX ■ Program Torque, Angle, Speed
Tool Setup Platform Tool
n Pistol and angle configurations available ■ Multiple Configurations
■ Multiple Language Support ■ Clone- Back Up and Restore
REACTION ARMS ■ Multiple Step Programming
Ingersoll Rand offers the following variety of reaction arms for different applications. Reaction arms are available in both ■ Retrieve Cycle Log and Share ■ Save and Load Configurations ■ End of Run (EOR) data on App
®
52 mm and 72 mm spline drives, depending the on the size of the gearbox. via Email ■ Firmware Update
■ Audit Logs ■ Calibration and Cp/Cpk
■ Virtual tool programming
■ Error Codes with Description ■ Programming via Bluetooth

Cranked, 45 or Straight, Plate and pin Double-sided Sliding Sliding peg and Sliding yoke, Blank
90 degrees aluminum or steel (multiple slave kit yoke assembly paddle and yoke welding
(multiple lengths lengths (multiple (multiple lengths assembly ring
available) available) lengths available) (multiple lengths
available) available)

www.ingersollrand.com
