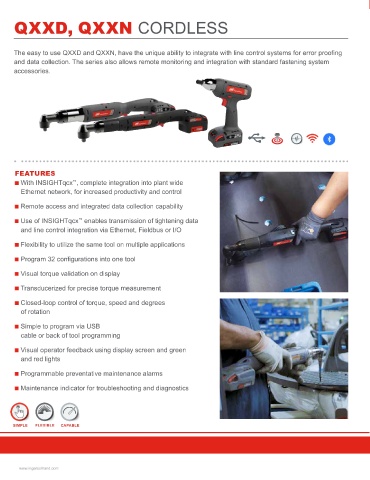

QXXD, QXXN CORDLESS QX ERGONOMIC TIGHTENING SYSTEM

The easy to use QXXD and QXXN, have the unique ability to integrate with line control systems for error proofing
and data collection. The series also allows remote monitoring and integration with standard fastening system Reducing the torque reaction in your fastening process doesn’t have to be complicated. Control and ergonomics,
accessories.
not compromise - that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the
QX Connect Series™ platform, with less the torque reaction.

FEATURES
n Ergonomically enhanced motor control algorithm significantly
reduces the average force experienced by the operator during the
tightening process

n Red foot label provides clear indication of ETS tool identity vs
FEATURES standard QX tool
n With INSIGHTqcx , complete integration into plant wide
™
Ethernet network, for increased productivity and control n Continuously flashing purple light above keypad provides operator
assurance that ETS is ACTIVE
n Remote access and integrated data collection capability
n All the capability of the QX platform, without the torque reaction
n Use of INSIGHTqcx enables transmission of tightening data
™
and line control integration via Ethernet, Fieldbus or I/O n Common software and battery platform for simple integration

n Flexibility to utilize the same tool on multiple applications n ETS features are available for all QX Connect models and available
in pistol grip, low torque angle and high torque angle
n Program 32 configurations into one tool
n Onboard ‘pulse’ counter supports proper optimization and application
n Visual torque validation on display of ETS tools on ideal applications (10 pulses or less per cycle)
n Transducerized for precise torque measurement

n Closed-loop control of torque, speed and degrees
of rotation

n Simple to program via USB
cable or back of tool programming
SIMPLE SETUP
n Visual operator feedback using display screen and green In addition to standard direct drive mode, Performance Mode, with medium energy pulses,
and red lights each tool configuration can be independently is the best all-purpose mode.
programmed to utilize one of the three available
n Programmable preventative maintenance alarms Productivity Mode, with the highest energy
single-parameter ETS modes, simplifying setup:
n Maintenance indicator for troubleshooting and diagnostics pulses, is the fastest mode. Ideal for soft joints or
Ergonomic Mode, with the lowest energy pulses, when high production rates are required.
is ideal for hard joints or when arm, wrist or tool
angles are most difficult.

SIMPLE FLEXIBLE CAPABLE
