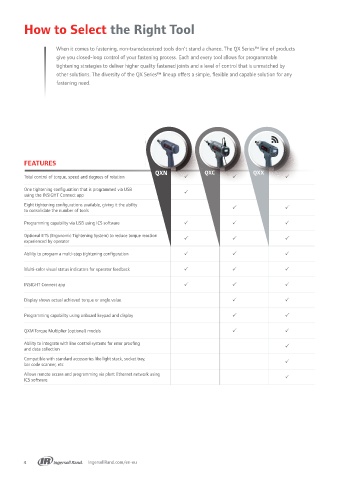

How to Select the Right Tool

When it comes to fastening, non-transducerized tools don't stand a chance. The QX Series™ line of products
give you closed-loop control of your fastening process. Each and every tool allows for programmable
tightening strategies to deliver higher quality fastened joints and a level of control that is unmatched by
other solutions. The diversity of the QX Series™ lineup offers a simple, flexible and capable solution for any
fastening need.

FEATURES
QXN QXC QXX
Total control of torque, speed and degrees of rotation P P P P P P P P P PPPPPPPPP PPPPPPPPP

One tightening configuration that is programmed via USB P
using the INSIGHT Connect app
Eight tightening configurations available, giving it the ability P P
to consolidate the number of tools
Programming capability via USB using ICS software P P P

Optional ETS (Ergonomic Tightening System) to reduce torque reaction P P P
experienced by operator

Ability to program a multi-step tightening configuration P P P

Multi-color visual status indicators for operator feedback P P P

INSIGHT Connect app P P P

Display shows actual achieved torque or angle value P P

Programming capability using onboard keypad and display P P

QXM Torque Multiplier (optional) models P P

Ability to integrate with line control systems for error proofing P
and data collection
Compatible with standard accessories like light stack, socket tray, P
bar code scanner, etc
Allows remote access and programming via plant Ethernet network using
ICS software P
