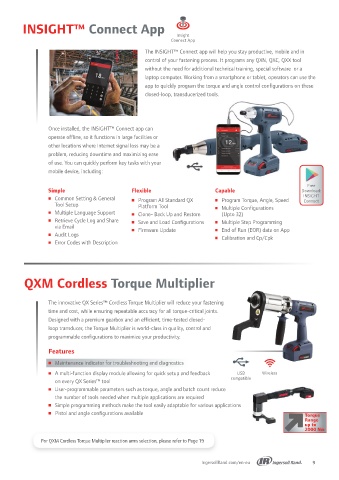

Page 9 - QX Series

INSIGHT™ Connect App
Insight
Connect App

The INSIGHT™ Connect app will help you stay productive, mobile and in
control of your fastening process. It programs any QXN, QXC, QXX tool
without the need for additional technical training, special software or a
laptop computer. Working from a smartphone or tablet, operators can use the
app to quickly program the torque and angle control configurations on these
closed-loop, transducerized tools.

Once installed, the INSIGHT™ Connect app can
operate offline, so it functions in large facilities or
other locations where Internet signal loss may be a
problem, reducing downtime and maximizing ease
of use. You can quickly perform key tasks with your
mobile device, including:

Free
Simple Flexible Capable Download:
■ Common Setting & General ■ Program All Standard QX ■ Program Torque, Angle, Speed INSIGHT
Tool Setup Platform Tool ■ Multiple Configurations Connect
■ Multiple Language Support ■ Clone- Back Up and Restore (Upto 32)
■ Retrieve Cycle Log and Share ■ Save and Load Configurations ■ Multiple Step Programming
via Email ■ Firmware Update ■ End of Run (EOR) data on App
■ Audit Logs
■ Calibration and Cp/Cpk
■ Error Codes with Description

QXM Cordless Torque Multiplier

The innovative QX Series™ Cordless Torque Multiplier will reduce your fastening
time and cost, while ensuring repeatable accuracy for all torque-critical joints.
Designed with a premium gearbox and an efficient, time-tested closed-
loop transducer, the Torque Multiplier is world-class in quality, control and
programmable configurations to maximize your productivity.

Features

■ Maintenance indicator for troubleshooting and diagnostics
■ A multi-function display module allowing for quick setup and feedback USB Wireless
compatible
on every QX Series™ tool
■ User-programmable parameters such as torque, angle and batch count reduce
the number of tools needed when multiple applications are required
■ Simple programming methods make the tool easily adaptable for various applications
■ Pistol and angle configurations available Torque
Range
up to
2000 Nm
For QXM Cordless Torque Multiplier reaction arms selection, please refer to Page 19
