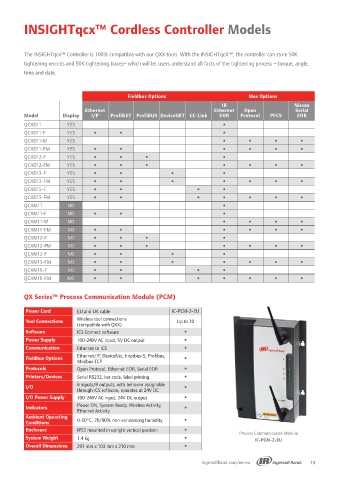

Page 13 - QX Series

INSIGHTqcx™ Cordless Controller Models

The INSIGHTqcx™ Controller is 100% compatible with our QXX tools. With the INSIGHTqcX™, the controller can store 50K
tightening records and 50K tightening traces– which will let users understand all facts of the tightening process – torque, angle,
time and date.

Fieldbus Options Mes Options
IR Nissan
Ethernet Ethernet Open Serial
Model Display I/P ProfiNET ProfiBUS DeviceNET CC-Link EOR Protocol PFCS EOR
QCXD11 YES 
QCXD11-F YES   
QCXD11-M YES    
QCXD11-FM YES      
QCXD12-F YES    
QCXD12-FM YES       
QCXD13-F YES    
QCXD13-FM YES       
QCXD15-F YES    
QCXD15-FM YES       
QCXM11 NO 
QCXM11-F NO   
QCXM11-M NO    
QCXM11-FM NO      
QCXM12-F NO    
QCXM12-FM NO       
QCXM13-F NO    
QCXM13-FM NO       
QCXM15-F NO    
QCXM15-FM NO       

QX Series™ Process Communication Module (PCM)

Power Cord EU and UK cable IC-PCM-2-EU
Tool Connections Wireless tool connections Up to 10
(compatible with QXX)
Software ICS Connect software 
Power Supply 100-240V AC input, 5V DC output 
Communication Ethernet to ICS 
Fieldbus Options Ethernet/IP, DeviceNet, Interbus-S, Profibus, 
Modbus-TCP
Protocols Open Protocol, Ethernet EOR, Serial EOR 
Printers/Devices Serial RS232, bar code, label printing 
I/O 8 inputs/8 outputs, with behavior assignable 
through ICS software, operates at 24V DC
I/O Power Supply 100-240V AC input, 24V DC output 
Power ON, System Ready, Wireless Activity,
Indicators 
Ethernet Activity
Ambient Operating
Conditions 0-50°C, 20/90% non-condensing humidity 
Enclosure IP52 mounted in upright vertical position 
Process Communication Module
System Weight 1.4 kg  IC-PCM-2-EU
Overall Dimensions 291 mm x 103 mm x 210 mm 
