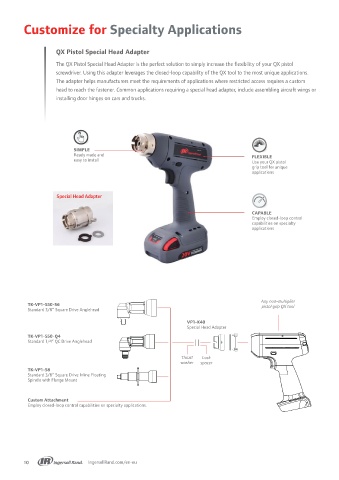

Customize for Specialty Applications

QX Pistol Special Head Adapter

The QX Pistol Special Head Adapter is the perfect solution to simply increase the flexibility of your QX pistol
screwdriver. Using this adapter leverages the closed-loop capability of the QX tool to the most unique applications.
The adapter helps manufacturers meet the requirements of applications where restricted access requires a custom
head to reach the fastener. Common applications requiring a special head adapter, include assembling aircraft wings or
installing door hinges on cars and trucks.

SIMPLE
Ready made and FLEXIBLE
easy to install Use your QX pistol
grip tool for unique
applications

Special Head Adapter

CAPABLE
Employ closed-loop control
capabilities on specialty
applications

Any non-multiplier
TK-VP1-550-S6 pistol grip QX tool
Standard 3/8” Square Drive Anglehead
VP1-K40
Special Head Adapter
TK-VP1-550-Q4
Standard 1/4” QC Drive Anglehead

Thrust Lock
washer spacer
TK-VP1-58
Standard 3/8” Square Drive Inline Floating
Spindle with Flange Mount

Custom Attachment
Employ closed-loop control capabilities on specialty applications.
