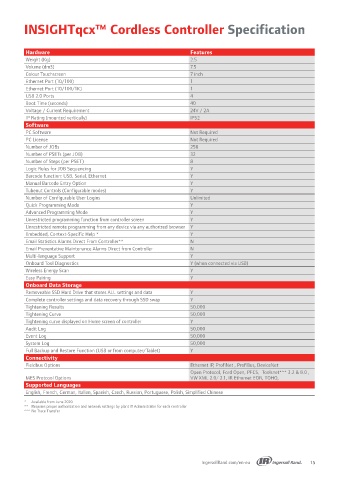

Page 15 - QX Series

INSIGHTqcx™ Cordless Controller Specification

Hardware Features
Weight (Kg) 2.5
Volume (dm3) 7.5
Colour Touchscreen 7 inch
Ethernet Port (10/100) 1
Ethernet Port (10/100/1K) 1
USB 2.0 Ports 4
Boot Time (seconds) 40
Voltage / Current Requirement 24V / 2A
IP Rating (mounted vertically) IP52
Software
PC Software Not Required
PC License Not Required
Number of JOBs 256
Number of PSETs (per JOB) 32
Number of Steps (per PSET) 8
Logic Rules for JOB Sequencing Y
Barcode function: USB, Serial, Ethernet Y
Manual Barcode Entry Option Y
Tubenut Controls (Configurable modes) Y
Number of Configurable User Logins Unlimited
Quick Programming Mode Y
Advanced Programming Mode Y
Unrestricted programming function from controller screen Y
Unrestricted remote programming from any device via any authorized browser Y
Embedded, Context-Specific Help * Y
Email Statistics Alarms Direct From Controller** N
Email Preventative Maintenance Alarms Direct from Controller N
Multi-language Support Y
Onboard Tool Diagnostics Y (when connected via USB)
Wireless Energy Scan Y
Easy Pairing Y
Onboard Data Storage
Removeable SSD Hard Drive that stores ALL settings and data Y
Complete controller settings and data recovery through SSD swap Y
Tightening Results 50,000
Tightening Curve 50,000
Tightening curve displayed on Home screen of controller Y
Audit Log 50,000
Event Log 50,000
System Log 50,000
Full Backup and Restore Function (USB or from computer/Tablet) Y
Connectivity
Fieldbus Options Ethernet IP, ProfiNet , ProfiBus, DeviceNet
Open Protocol, Ford Open, PFCS, Toolsnet*** 3.2 & 8.0 ,
MES Protcool Options VW XML 2.0/ 2.1, IR Ethernet EOR, TOHO,
Supported Languages
English, French, German, Italian, Spanish, Czech, Russian, Portuguese, Polish, Simplified Chinese

* Available from June 2020
** Requires proper authorization and network settings by plant IT Administrator for each controller
*** No Trace Transfer
