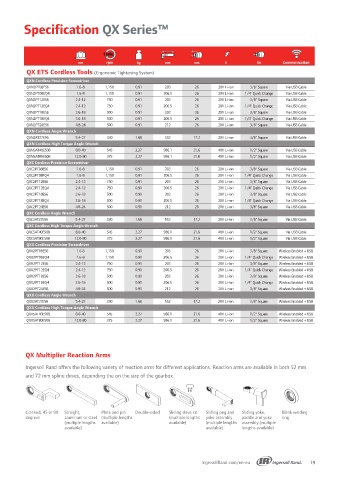

Page 19 - QX Series

Specification QX Series™ Specification QX Series™

nm rpm kg mm mm V in Communication
QX ETS Cordless Tools (Ergonomic Tightening System)
QXN Cordless Precision Screwdriver
QXN2PT08ES6 1.6-8 1,150 0.91 203 26 20V Li-ion 3/8" Square Via USB Cable
QXN2PT08EQ4 1.6-8 1,150 0.91 206.5 26 20V Li-ion 1/4" Quick Change Via USB Cable
QXN2PT12ES6 2.4-12 750 0.91 203 26 20V Li-ion 3/8" Square Via USB Cable
QXN2PT12EQ4 2.4-12 750 0.91 206.5 26 20V Li-ion 1/4" Quick Change Via USB Cable
QXN2PT18ES6 3.6-18 500 0.91 203 26 20V Li-ion 3/8" Square Via USB Cable
QXN2PT18EQ4 3.6-18 500 0.91 206.5 26 20V Li-ion 1/4" Quick Change Via USB Cable
QXN2PT24ES6 4.8-24 500 0.91 212 26 20V Li-ion 3/8" Square Via USB Cable
QXN Cordless Angle Wrench
QXN2AT27ES6 5.4-27 330 1.68 552 17.2 20V Li-ion 3/8" Square Via USB Cable
QXN Cordless High Torque Angle Wrench
QXN5AT40ES08 8.0-40 545 2.27 586.1 21.6 40V Li-ion 1/2" Square Via USB Cable
QXN5AT80ES08 12.0-80 375 2.27 586.1 21.6 40V Li-ion 1/2" Square Via USB Cable
QXC Cordless Precision Screwdriver
QXC2PT08ES6 1.6-8 1,150 0.91 203 26 20V Li-ion 3/8" Square Via USB Cable
QXC2PT08EQ4 1.6-8 1,150 0.91 206.5 26 20V Li-ion 1/4" Quick Change Via USB Cable
QXC2PT12ES6 2.4-12 750 0.91 203 26 20V Li-ion 3/8" Square Via USB Cable
QXC2PT12EQ4 2.4-12 750 0.91 206.5 26 20V Li-ion 1/4" Quick Change Via USB Cable
QXC2PT18ES6 3.6-18 500 0.91 203 26 20V Li-ion 3/8" Square Via USB Cable
QXC2PT18EQ4 3.6-18 500 0.91 206.5 26 20V Li-ion 1/4" Quick Change Via USB Cable
QXC2PT24ES6 4.8-24 500 0.91 212 26 20V Li-ion 3/8" Square Via USB Cable
QXC Cordless Angle Wrench
QXC2AT27ES6 5.4-27 330 1.68 552 17.2 20V Li-ion 3/8" Square Via USB Cable
QXC Cordless High Torque Angle Wrench
QXC5AT40ES08 8.0-40 545 2.27 586.1 21.6 40V Li-ion 1/2" Square Via USB Cable
QXC5AT80ES08 12.0-80 375 2.27 586.1 21.6 40V Li-ion 1/2" Square Via USB Cable
QXX Cordless Precision Screwdriver
QXX2PT08ES6 1.6-8 1,150 0.91 203 26 20V Li-ion 3/8" Square Wireless Enabled + USB
QXX2PT08EQ4 1.6-8 1,150 0.91 206.5 26 20V Li-ion 1/4" Quick Change Wireless Enabled + USB
QXX2PT12ES6 2.4-12 750 0.91 203 26 20V Li-ion 3/8" Square Wireless Enabled + USB
QXX2PT12EQ4 2.4-12 750 0.91 206.5 26 20V Li-ion 1/4" Quick Change Wireless Enabled + USB
QXX2PT18ES6 3.6-18 500 0.91 203 26 20V Li-ion 3/8" Square Wireless Enabled + USB
QXX2PT18EQ4 3.6-18 500 0.91 206.5 26 20V Li-ion 1/4" Quick Change Wireless Enabled + USB
QXX2PT24ES6 4.8-24 500 0.91 212 26 20V Li-ion 3/8" Square Wireless Enabled + USB
QXX Cordless Angle Wrench
QXX2AT27ES6 5.4-27 330 1.68 552 17.2 20V Li-ion 3/8" Square Wireless Enabled + USB
QXX Cordless High Torque Angle Wrench
QXX5AT40ES08 8.0-40 545 2.27 586.1 21.6 40V Li-ion 1/2" Square Wireless Enabled + USB
QXX5AT80ES08 12.0-80 375 2.27 586.1 21.6 40V Li-ion 1/2" Square Wireless Enabled + USB

QX Multiplier Reaction Arms

Ingersoll Rand offers the following variety of reaction arms for different applications. Reaction arms are available in both 52 mm
and 72 mm spline drives, depending the on the size of the gearbox.

Cranked, 45 or 90 Straight, Plate and pin Double-sided Sliding slave kit Sliding peg and Sliding yoke, Blank welding
degrees aluminum or steel (multiple lengths (multiple lengths yoke assembly paddle and yoke ring
(multiple lengths available) available) (multiple lengths assembly (multiple
available) available) lengths available)
