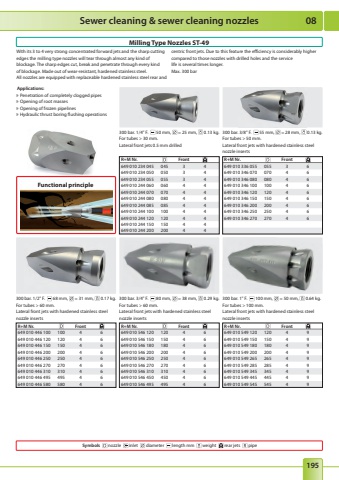

08195Symbols nozzle inlet diameter length mm weight rear jets pipeMilling Type Nozzles ST-49With its 3 to 4 very strong concentrated forward jets and the sharp cutting edges the milling type nozzles will tear through almost any kind of blockage. The sharp edges cut, break and penetrate through every kind of blockage. Made out of wear-resistant, hardened stainless steel. All nozzles are equipped with replaceable hardened stainless steel rear and centric front jets. Due to this feature the efficiency is considerably higher compared to those nozzles with drilled holes and the service life is several times longer.Max. 300 bar300 bar. 1/4\50 mm, = 25 mm, 0.13 kg. For tubes > 30 mm. Lateral front jets 0.5 mm drilled300 bar. 3/8\55 mm, = 28 mm, 0.13 kg. For tubes > 50 mm. Lateral front jets with hardened stainless steel nozzle inserts300 bar. 1/2\68 mm, = 31 mm, 0.17 kg. For tubes > 60 mm. Lateral front jets with hardened stainless steel nozzle inserts300 bar. 3/4\80 mm, = 38 mm, 0.29 kg. For tubes > 60 mm. Lateral front jets with hardened stainless steel nozzle inserts300 bar. 1\100 mm, = 50 mm, 0.64 kg. For tubes > 100 mm. Lateral front jets with hardened stainless steel nozzle inserts Applications:%u00bb Penetration of completely clogged pipes%u00bb Opening of root masses%u00bb Opening of frozen pipelines%u00bb Hydraulic thrust boring flushing operationsR+M Nr. Front649 010 234 045 045 3 4649 010 234 050 050 3 4649 010 234 055 055 3 4649 010 244 060 060 4 4649 010 244 070 070 4 4649 010 244 080 080 4 4649 010 244 085 085 4 4649 010 244 100 100 4 4649 010 244 120 120 4 4649 010 244 150 150 4 4649 010 244 200 200 4 4R+M Nr. Front649 010 336 055 055 3 6649 010 346 070 070 4 6649 010 346 080 080 4 6649 010 346 100 100 4 6649 010 346 120 120 4 6649 010 346 150 150 4 6649 010 346 200 200 4 6649 010 346 250 250 4 6649 010 346 270 270 4 6R+M Nr. Front649 010 446 100 100 4 6649 010 446 120 120 4 6649 010 446 150 150 4 6649 010 446 200 200 4 6649 010 446 250 250 4 6649 010 446 270 270 4 6649 010 446 310 310 4 6649 010 446 495 495 4 6649 010 446 580 580 4 6R+M Nr. Front649 010 546 120 120 4 6649 010 546 150 150 4 6649 010 546 180 180 4 6649 010 546 200 200 4 6649 010 546 250 250 4 6649 010 546 270 270 4 6649 010 546 310 310 4 6649 010 546 450 450 4 6649 010 546 495 495 4 6R+M Nr. Front649 010 549 120 120 4 9649 010 549 150 150 4 9649 010 549 180 180 4 9649 010 549 200 200 4 9649 010 549 265 265 4 9649 010 549 285 285 4 9649 010 549 345 345 4 9649 010 549 445 445 4 9649 010 549 545 545 4 9Functional principleSewer cleaning & sewer cleaning nozzles
