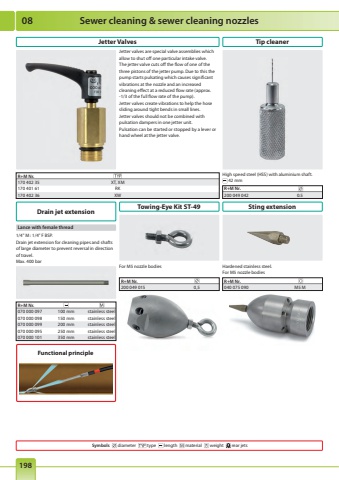

08198Sewer cleaning & sewer cleaning nozzlesR+M Nr. 170 402 35 XT, XM170 401 61 RK170 402 36 XWR+M Nr. 200 049 042 0.5Jetter Valves Tip cleanerJetter valves are special valve assemblies which allow to shut off one particular intake valve. The jetter valve cuts off the flow of one of the three pistons of the jetter pump. Due to this the pump starts pulsating which causes significant vibrations at the nozzle and an increased cleaning effect at a reduced flow rate (approx. -1/3 of the full flow rate of the pump). Jetter valves create vibrations to help the hose sliding around tight bends in small lines.Jetter valves should not be combined with pulsation dampers in one jetter unit. Pulsation can be started or stopped by a lever or hand wheel at the jetter valve.High speed steel (HSS) with aluminium shaft. 42 mmR+M Nr. 040 075 090 M5 MSting extensionHardened stainless steel. For M5 nozzle bodiesSymbols diameter type length material weight rear jets Lance with female threadDrain jet extension1/4\Drain jet extension for cleaning pipes and shafts of large diameter to prevent reversal in direction of travel. Max. 400 barR+M Nr. 070 000 097 100 mm stainless steel070 000 098 150 mm stainless steel070 000 099 200 mm stainless steel070 000 095 250 mm stainless steel070 000 101 350 mm stainless steelR+M Nr. 200 049 015 0,5Towing-Eye Kit ST-49For M5 nozzle bodiesFunctional principle
