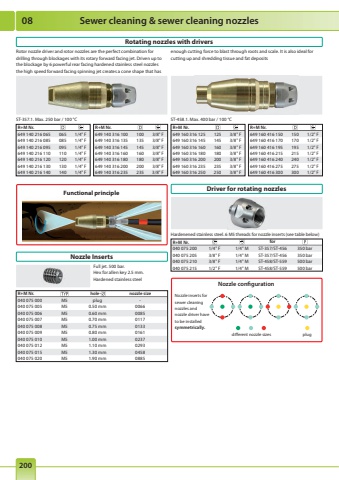

08200Sewer cleaning & sewer cleaning nozzlesRotating nozzles with driversDriver for rotating nozzlesRotor nozzle driver and rotor nozzles are the perfect combination for drilling through blockages with its rotary forward facing jet. Driven up to the blockage by 6 powerful rear facing hardened stainless steel nozzles the high speed forward facing spinning jet creates a cone shape that has enough cutting force to blast through roots and scale. It is also ideal for cutting up and shredding tissue and fat depositsNozzle inserts for sewer cleaning nozzles and nozzle driver have to be installed symmetrically.different nozzle sizes plugNozzle configurationNozzle InsertsFull jet. 500 bar. Hex for allen key 2.5 mm. Hardened stainless steelFunctional principleR+M Nr. hole- nozzle size040 075 000 M5 plug -040 075 005 M5 0.50 mm 0066040 075 006 M5 0.60 mm 0085040 075 007 M5 0.70 mm 0117040 075 008 M5 0.75 mm 0133040 075 009 M5 0.80 mm 0161040 075 010 M5 1.00 mm 0237040 075 012 M5 1.10 mm 0293040 075 015 M5 1.30 mm 0458040 075 020 M5 1.90 mm 0885R+M Nr. for040 075 200 1/4\1/4\ST-357/ST-456 350 bar040 075 205 3/8\1/4\ST-357/ST-456 350 bar040 075 210 3/8\1/4\ST-458/ST-559 500 bar040 075 215 1/2\1/4\ST-458/ST-559 500 barHardenened stainless steel. 6 M5 threads for nozzle inserts (see table below)ST-357.1. Max. 250 bar / 100 %u00b0C ST-458.1. Max. 400 bar / 100 %u00b0CR+M Nr. 649 140 216 065 065 1/4\649 140 216 085 085 1/4\649 140 216 095 095 1/4\649 140 216 110 110 1/4\649 140 216 120 120 1/4\649 140 216 130 130 1/4\649 140 216 140 140 1/4\R+M Nr. 649 140 316 100 100 3/8\649 140 316 135 135 3/8\649 140 316 145 145 3/8\649 140 316 160 160 3/8\649 140 316 180 180 3/8\649 140 316 200 200 3/8\649 140 316 235 235 3/8\R+M Nr. 649 160 416 150 150 1/2\649 160 416 170 170 1/2\649 160 416 195 195 1/2\649 160 416 215 215 1/2\649 160 416 240 240 1/2\649 160 416 275 275 1/2\649 160 416 300 300 1/2\R+M Nr. 649 160 316 125 125 3/8\649 160 316 145 145 3/8\649 160 316 160 160 3/8\649 160 316 180 180 3/8\649 160 316 200 200 3/8\649 160 316 235 235 3/8\649 160 316 250 250 3/8\
