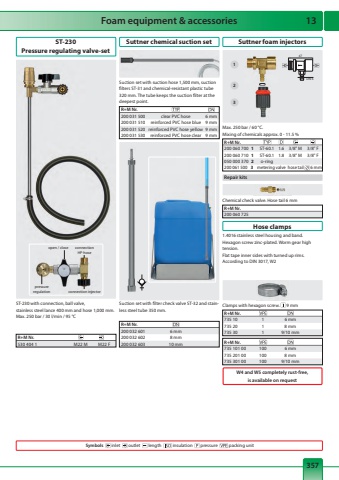

35713123DN 647R+M Nr.200 060 725ST-230 Pressure regulating valve-setSuttner chemical suction set Suttner foam injectorsSuction set with suction hose 1,500 mm, suction filters ST-31 and chemical-resistant plastic tube 320 mm. The tube keeps the suction filter at the deepest point.Chemical check valve. Hose tail 6 mmRepair kitsR+M Nr. 200 031 500 clear PVC hose 6 mm200 031 510 reinforced PVC hose blue 9 mm200 031 520 reinforced PVC hose yellow 9 mm200 031 530 reinforced PVC hose clear 9 mmR+M Nr. 530 404 1 M22 M M22 FST-230 with connection, ball valve, stainless steel lance 400 mm and hose 1,000 mm. Max. 250 bar / 30 l/min / 95 %u00b0Cconnection HP-hosepressure regulation connection injectorMax. 250 bar / 60 %u00b0C. Mixing of chemicals approx. 0 - 11.5 %R+M Nr. 200 060 700 1 ST-60.1 1.6 3/8\3/8\200 060 710 1 ST-60.1 1.8 3/8\3/8\050 000 370 2 o-ring200 061 500 3 metering valve hose tail 6 mmopen / closeR+M Nr. 200 032 601 6 mm200 032 602 8 mm200 032 603 10 mmSuction set with filter check valve ST-32 and stainless steel tube 350 mm. Foam equipment & accessoriesHose clamps1.4016 stainless steel housing and band. Hexagon screw zinc-plated. Worm gear high tension. Flat tape inner sides with turned up rims. According to DIN 3017, W2Clamps with hexagon screw. 9 mmW4 and W5 completely rust-free, is available on requestR+M Nr. 735 10 1 6 mm735 20 1 8 mm735 30 1 9/10 mmR+M Nr. 735 101 00 100 6 mm735 201 00 100 8 mm735 301 00 100 9/10 mmSymbols inlet outlet length insulation pressure packing unit
