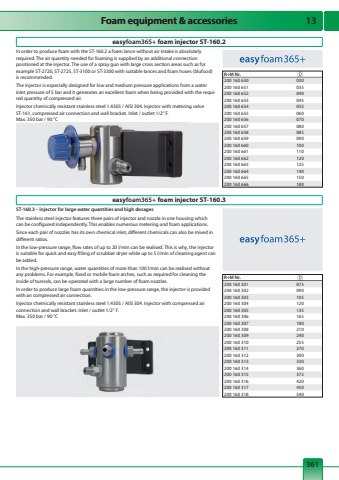

36113easyfoam365+ foam injector ST-160.2easyfoam365+ foam injector ST-160.3In order to produce foam with the ST-160.2 a foam lance without air intake is absolutely required. The air quantity needed for foaming is supplied by an additional connection positioned at the injector. The use of a spray gun with large cross section areas such as for example ST-2720, ST-2725, ST-3100 or ST-3300 with suitable lances and foam hoses (blufood) is recommended.The injector is especially designed for low and medium pressure applications from a water inlet pressure of 5 bar and it generates an excellent foam when being provided with the required quantity of compressed air.Injector chemically resistant stainless steel 1.4305 / AISI 304. Injector with metering valve ST-161, compressed air connection and wall bracket. Inlet / outlet 1/2\Max. 350 bar / 90 %u00b0CST-160.3 %u2013 injector for large water quantities and high dosagesThe stainless steel injector features three pairs of injector and nozzle in one housing which can be configured independently. This enables numerous metering and foam applications.Since each pair of nozzles has its own chemical inlet, different chemicals can also be mixed in different ratios.In the low-pressure range, flow rates of up to 20 l/min can be realised. This is why, the injector is suitable for quick and easy filling of scrubber dryer while up to 5 l/min of cleaning agent can be added.In the high-pressure range, water quantities of more than 100 l/min can be realised without any problems. For example, fixed or mobile foam arches, such as required for cleaning the inside of tunnels, can be operated with a large number of foam nozzles.In order to produce large foam quantities in the low-pressure range, the injector is provided with an compressed air connection.Injector chemically resistant stainless steel 1.4305 / AISI 304. Injector with compressed air connection and wall bracket. Inlet / outlet 1/2\Max. 350 bar / 90 %u00b0CR+M Nr.200 160 301 075200 160 302 090200 160 303 105200 160 304 120200 160 305 135200 160 306 165200 160 307 180200 160 308 210200 160 309 240200 160 310 255200 160 311 270200 160 312 300200 160 313 330200 160 314 360200 160 315 375200 160 316 420200 160 317 450200 160 318 540 R+M Nr.200 160 650 030200 160 651 035200 160 652 040200 160 653 045200 160 654 055200 160 655 060200 160 656 070200 160 657 080200 160 658 085200 160 659 090200 160 660 100200 160 661 110200 160 662 120200 160 663 125200 160 664 140200 160 665 150200 160 666 180Foam equipment & accessories
