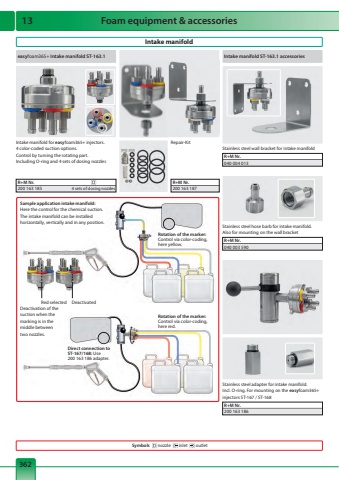

36213 Foam equipment & accessoriesIntake manifoldSample application intake manifold:Here the control for the chemical suction.The intake manifold can be installed horizontally, vertically and in any position. Deactivation of the suction when the marking is in the middle between two nozzles. Rotation of the marker:Control via color-coding, here yellow. Rotation of the marker:Control via color-coding, here red. Direct connection to ST-167/168: Use 200 163 186 adapter. Red selected Deactivatedeasyfoam365+ Intake manifold ST-163.1 Intake manifold ST-163.1 accessoriesR+M Nr.200 163 185 4 sets of dosing nozzles R+M Nr.040 004 013R+M Nr.200 163 187R+M Nr.040 003 590R+M Nr.200 163 186Intake manifold for easyfoam365+ injectors.4 color-coded suction options. Control by turning the rotating part.Including O-ring and 4 sets of dosing nozzles Stainless steel wall bracket for intake manifoldRepair-KitStainless steel hose barb for intake manifold. Also for mounting on the wall bracket Stainless steel adapter for intake manifold.Incl. O-ring. For mounting on the easyfoam365+ injectors ST-167 / ST-168 Symbols nozzle inlet outlet
