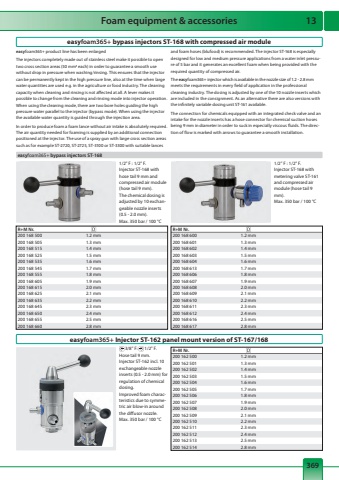

369Foam equipment & accessories 131/2\Injector ST-168 with hose tail 9 mm and compressed air module (hose tail 9 mm). The chemical dosing is adjusted by 10 exchangeable nozzle inserts (0.5 - 2.0 mm). Max. 350 bar / 100 %u00b0C1/2\Injector ST-168 with metering valve ST-161 and compressed air module (hose tail 9 mm). Max. 350 bar / 100 %u00b0C 3/8\1/2\Hose tail 9 mm. Injector ST-162 incl. 10 exchangeable nozzle inserts (0.5 - 2.0 mm) for regulation of chemical dosing.Improved foam characteristics due to symmetric air blow-in around the diffusor nozzle. Max. 350 bar / 100 %u00b0Ceasyfoam365+ bypass injectors ST-168easyfoam365+ bypass injectors ST-168 with compressed air moduleR+M Nr.200 168 500 1.2 mm200 168 505 1.3 mm200 168 515 1.4 mm200 168 525 1.5 mm200 168 535 1.6 mm200 168 545 1.7 mm200 168 555 1.8 mm200 168 605 1.9 mm200 168 615 2.0 mm200 168 625 2.1 mm200 168 635 2.2 mm200 168 645 2.3 mm200 168 650 2.4 mm200 168 655 2.5 mm200 168 660 2.8 mmR+M Nr.200 168 600 1.2 mm200 168 601 1.3 mm200 168 602 1.4 mm200 168 603 1.5 mm200 168 604 1.6 mm200 168 613 1.7 mm200 168 606 1.8 mm200 168 607 1.9 mm200 168 608 2.0 mm200 168 609 2.1 mm200 168 610 2.2 mm200 168 611 2.3 mm200 168 612 2.4 mm200 168 616 2.5 mm200 168 617 2.8 mmeasyfoam365+ product line has been enlargedThe injectors completely made out of stainless steel make it possible to open two cross section areas (50 mm2 each) in order to guarantee a smooth use without drop in pressure when washing/rinsing. This ensures that the injector can be permanently kept in the high pressure line, also at the time when large water quantities are used e.g. in the agriculture or food industry. The cleaning capacity when cleaning and rinsing is not affected at all. A lever makes it possible to change from the cleaning and rinsing mode into injector operation. When using the cleaning mode, there are two bore holes guiding the high pressure water parallel to the injector (bypass mode). When using the injector the available water quantity is guided through the injection area.In order to produce foam a foam lance without air intake is absolutely required. The air quantity needed for foaming is supplied by an additional connection positioned at the injector. The use of a spray gun with large cross section areas such as for example ST-2720, ST-2725, ST-3100 or ST-3300 with suitable lances and foam hoses (blufood) is recommended. The injector ST-168 is especially designed for low and medium pressure applications from a water inlet pressure of 5 bar and it generates an excellent foam when being provided with the required quantity of compressed air.The easyfoam365+ injector which is available in the nozzle size of 1.2 - 2.8 mm meets the requirements in every field of application in the professional cleaning industry. The dosing is adjusted by one of the 10 nozzle inserts which are included in the consignment. As an alternative there are also versions with the infinitely variable dosing unit ST-161 available.The connection for chemicals equipped with an integrated check valve and an intake for the nozzle inserts has a hose connector for chemical suction hoses being 9 mm in diameter in order to suck in especially viscous fluids. The direction of flow is marked with arrows to guarantee a smooth installation.easyfoam365+ Injector ST-162 panel mount version of ST-167/168R+M Nr.200 162 500 1.2 mm200 162 501 1.3 mm200 162 502 1.4 mm200 162 503 1.5 mm200 162 504 1.6 mm200 162 505 1.7 mm200 162 506 1.8 mm200 162 507 1.9 mm200 162 508 2.0 mm200 162 509 2.1 mm200 162 510 2.2 mm200 162 511 2.3 mm200 162 512 2.4 mm200 162 513 2.5 mm200 162 514 2.8 mm
