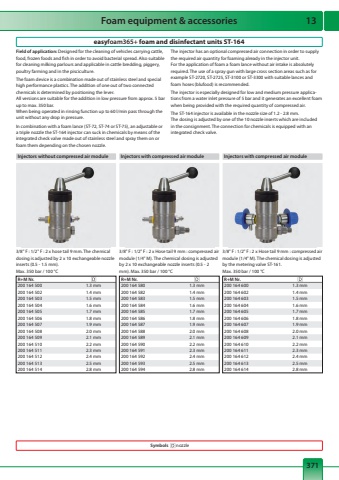

37113Symbols nozzleFoam equipment & accessoriesInjectors without compressed air module Injectors with compressed air module Injectors with compressed air module3/8\dosing is adjusted by 2 x 10 exchangeable nozzle inserts (0.5 - 1.5 mm). Max. 350 bar / 100 %u00b0C3/8\module (1/4\by 2 x 10 exchangeable nozzle inserts (0.5 - 2 mm). Max. 350 bar / 100 %u00b0C3/8\module (1/4\by the metering valve ST-161. Max. 350 bar / 100 %u00b0Ceasyfoam365+ foam and disinfectant units ST-164R+M Nr.200 164 500 1.3 mm200 164 502 1.4 mm200 164 503 1.5 mm200 164 504 1.6 mm200 164 505 1.7 mm200 164 506 1.8 mm200 164 507 1.9 mm200 164 508 2.0 mm200 164 509 2.1 mm200 164 510 2.2 mm200 164 511 2.3 mm200 164 512 2.4 mm200 164 513 2.5 mm200 164 514 2.8 mmR+M Nr.200 164 580 1.3 mm200 164 582 1.4 mm200 164 583 1.5 mm200 164 584 1.6 mm200 164 585 1.7 mm200 164 586 1.8 mm200 164 587 1.9 mm200 164 588 2.0 mm200 164 589 2.1 mm200 164 590 2.2 mm200 164 591 2.3 mm200 164 592 2.4 mm200 164 593 2.5 mm200 164 594 2.8 mmField of application: Designed for the cleaning of vehicles carrying cattle, food, frozen foods and fish in order to avoid bacterial spread. Also suitable for cleaning milking parlours and applicable in cattle bredding, piggery, poultry farming and in the pisciculture.The foam device is a combination made out of stainless steel and special high performance plastics. The addition of one out of two connected chemicals is determined by positioning the lever. All versions are suitable for the addition in low pressure from approx. 5 bar up to max. 350 bar. When being operated in rinsing function up to 60 l/min pass through the unit without any drop in pressure. In combination with a foam lance (ST-72, ST-74 or ST-75), an adjustable or a triple nozzle the ST-164 injector can suck in chemicals by means of the integrated check valve made out of stainless steel and spray them on or foam them depending on the chosen nozzle. The injector has an optional compressed air connection in order to supply the required air quantity for foaming already in the injector unit. For the application of foam a foam lance without air intake is absolutely required. The use of a spray gun with large cross section areas such as for example ST-2720, ST-2725, ST-3100 or ST-3300 with suitable lances and foam hoses (blufood) is recommended. The injector is especially designed for low and medium pressure applications from a water inlet pressure of 5 bar and it generates an excellent foam when being provided with the required quantity of compressed air.The ST-164 injector is available in the nozzle size of 1.2 - 2.8 mm. The dosing is adjusted by one of the 10 nozzle inserts which are included in the consignment. The connection for chemicals is equipped with an integrated check valve.R+M Nr.200 164 600 1.3 mm200 164 602 1.4 mm200 164 603 1.5 mm200 164 604 1.6 mm200 164 605 1.7 mm200 164 606 1.8 mm200 164 607 1.9 mm200 164 608 2.0 mm200 164 609 2.1 mm200 164 610 2.2 mm200 164 611 2.3 mm200 164 612 2.4 mm200 164 613 2.5 mm200 164 614 2.8 mm
