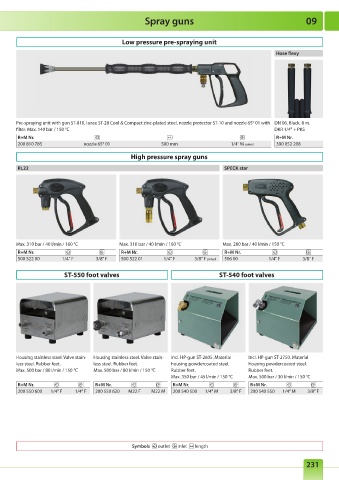

Spray guns 09

Low pressure pre-spraying unit
Hose flexy

Pre-spraying unit with gun ST-810, lance ST-28 Cool & Compact zinc-plated steel, nozzle protector ST-10 and nozzle 65° 01 with DN 06. Black. 8 m.
filter. Max. 140 bar / 150 °C DKR 1/4" + PKS
R+M Nr. R+M Nr.
200 810 785 nozzle 65° 01 500 mm 1/4" M swivel 390 052 208

High pressure spray guns
RL22 SPECK star

Max. 310 bar / 40 l/min / 160 °C Max. 310 bar / 40 l/min / 160 °C Max. 280 bar / 40 l/min / 150 °C
R+M Nr. R+M Nr. R+M Nr.
500 522 00 1/4" F 3/8" F 500 522 01 1/4" F 3/8" F swivel 506 00 1/4" F 3/8" F

ST-550 foot valves ST-540 foot valves

Housing stainless steel. Valve stain- Housing stainless steel. Valve stain- Incl. HP-gun ST-2605. Material Incl. HP-gun ST-2750. Material
less steel. Rubber feet. less steel. Rubber feet. housing powdercoated steel. housing powdercoated steel.
Max. 500 bar / 80 l/min / 150 °C Max. 500 bar / 80 l/min / 150 °C Rubber feet. Rubber feet.
Max. 350 bar / 45 l/min / 150 °C Max. 500 bar / 30 l/min / 150 °C
R+M Nr. R+M Nr. R+M Nr. R+M Nr.
200 550 600 1/4" F 1/4" F 200 550 620 M22 F M22 M 200 540 500 1/4" M 3/8" F 200 540 550 1/4" M 3/8" F

Symbols outlet inlet length
