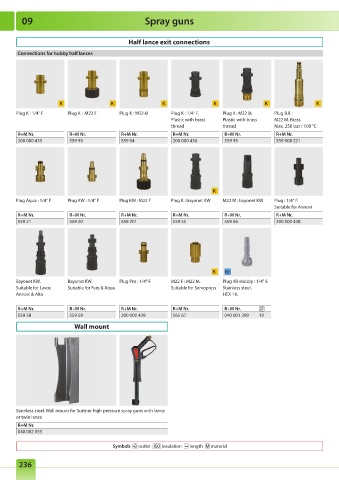

Page 237 - RM_2022

09 Spray guns

Half lance exit connections
Connections for hobby half lances

K K K K K K
Plug K : 1/4" F Plug K : M22 F Plug K : M22 M Plug K : 1/4" F. Plug K : M22 M. Plug 8.8 :
Plastic with brass Plastic with brass M22 M. Brass.
thread thread Max. 250 bar / 100 °C
R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr.
200 000 435 559 93 559 94 200 000 436 559 95 559 908 221

K

Plug Aqua : 1/4" F Plug KW : 1/4" F Plug KW : M22 F Plug K : bayonet KW M22 M : bayonet KW Plug : 1/4" F.
Suitable for Annovi
R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr.
559 21 559 20 559 201 559 55 559 56 200 000 438

K Kr
Bayonet KW. Bayonet KW. Plug Pro : 1/4" F M22 F : M22 M. Plug KR-Hobby : 1/4" F.
Suitable for Lavor, Suitable for Faip & Aqua Suitable for Servopress Stainless steel.
Annovi & Alto HEX 19.

R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr.
559 58 559 59 200 000 439 565 67 040 001 209 10
Wall mount

Stainless steel. Wall mount for Suttner high pressure spray guns with lance
or twin lance
R+M Nr.
040 002 055

Symbols outlet insulation length material
