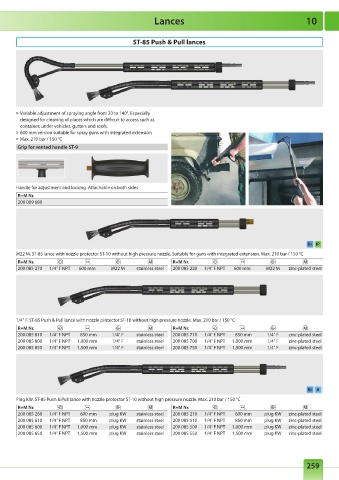

Page 260 - RM_2022

Lances 10

ST-85 Push & Pull lances

» Variable adjustment of spraying angle from 20 to 140°. Especially
designed for cleaning of places which are difficult to access such as
container, under vehicles, gutters and roofs.
» 600 mm version suitable for spray guns with integrated extension
» Max. 210 bar / 150 °C
Grip for vented handle ST-9

Handle for adjustment and locking. Attachable on both sides
R+M Nr.
200 009 680

Kr IP
M22 M. ST-85 lance with nozzle protector ST-10 without high pressure nozzle. Suitable for guns with integrated extension. Max. 210 bar / 150 °C
R+M Nr. R+M Nr.
200 085 270 1/4" F NPT 600 mm M22 M stainless steel 200 085 220 1/4" F NPT 600 mm M22 M zinc-plated steel

1/4" F. ST-85 Push & Pull lance with nozzle protector ST-10 without high pressure nozzle. Max. 210 bar / 150 °C
R+M Nr. R+M Nr.
200 085 810 1/4" F NPT 850 mm 1/4" F stainless steel 200 085 710 1/4" F NPT 850 mm 1/4" F zinc-plated steel
200 085 800 1/4" F NPT 1,000 mm 1/4" F stainless steel 200 085 700 1/4" F NPT 1,000 mm 1/4" F zinc-plated steel
200 085 850 1/4" F NPT 1,500 mm 1/4" F stainless steel 200 085 750 1/4" F NPT 1,500 mm 1/4" F zinc-plated steel

Kr A
Plug KW. ST-85 Push & Pull lance with nozzle protector ST-10 without high pressure nozzle. Max. 210 bar / 150 °C
R+M Nr. R+M Nr.
200 085 260 1/4" F NPT 600 mm plug KW stainless steel 200 085 210 1/4" F NPT 600 mm plug KW zinc-plated steel
200 085 610 1/4" F NPT 850 mm plug KW stainless steel 200 085 510 1/4" F NPT 850 mm plug KW zinc-plated steel
200 085 600 1/4" F NPT 1,000 mm plug KW stainless steel 200 085 500 1/4" F NPT 1,000 mm plug KW zinc-plated steel
200 085 650 1/4" F NPT 1,500 mm plug KW stainless steel 200 085 550 1/4" F NPT 1,500 mm plug KW zinc-plated steel

259
